Description

General part information

T205 Series

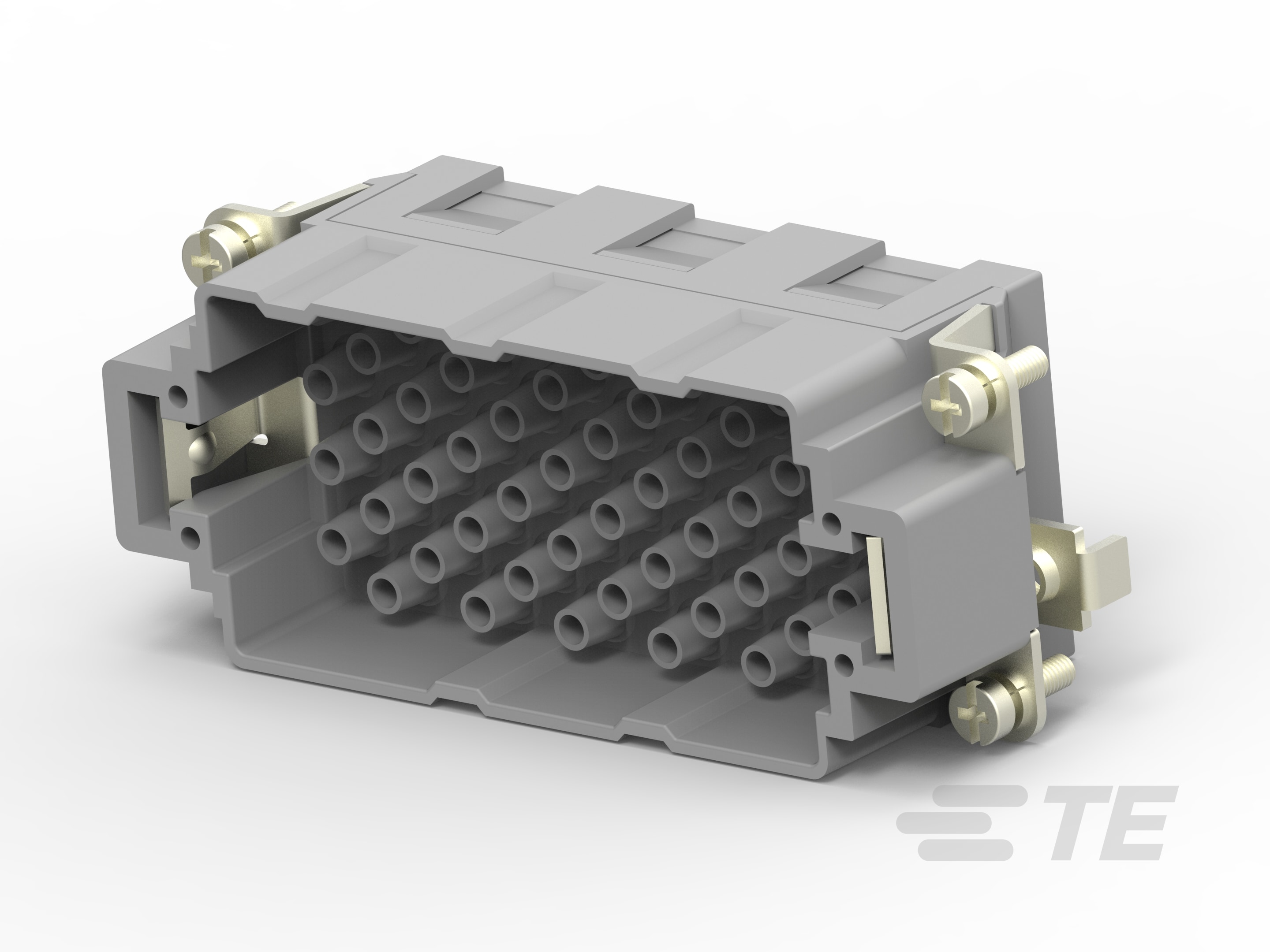

Insert for Contacts, Socket, 48+PE Pole Configuration, Crimp, 26 – 12 AWG, .14 – 4 mm² Wire, 16 A, Power & Signal

Technical Specifications

Parameters and characteristics for this part

SpecificationT2050962201-000
Connector TypeInsert without Contacts
Contact TypeCEF, DEF
Current Rating16 A
GenderFemale
Housing MaterialPC, Polycarbonate
Material Flammability RatingUL94 V-0
Number of Positions48
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Position TypesGround
SizeH16B
Termination StyleCrimp
Voltage Rating400 V
