AM14
ActiveKnowles Syfer

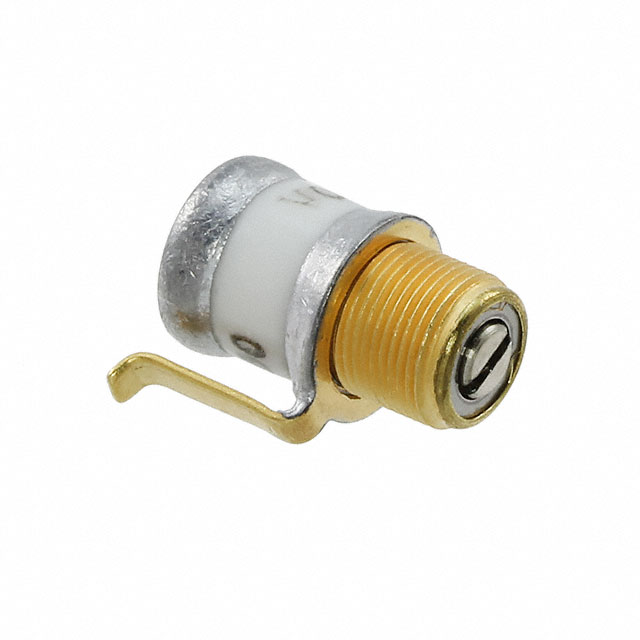

CAP TRIMMER 1-14PF 125V SMD
AM14
ActiveKnowles Syfer
CAP TRIMMER 1-14PF 125V SMD
Description
General part information
AM14
1 ~ 14pF Trimmer Capacitor 125 V Top Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AM14 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 14 pF |
| Capacitance Range (Min) | 1 pF |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | General Purpose |
| Height - Seated (Max) | 0.48 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Q | 3000 |
| Size / Dimension Diameter | 0.25 in |
| Voltage - Rated | 125 VAC |
