Description
General part information

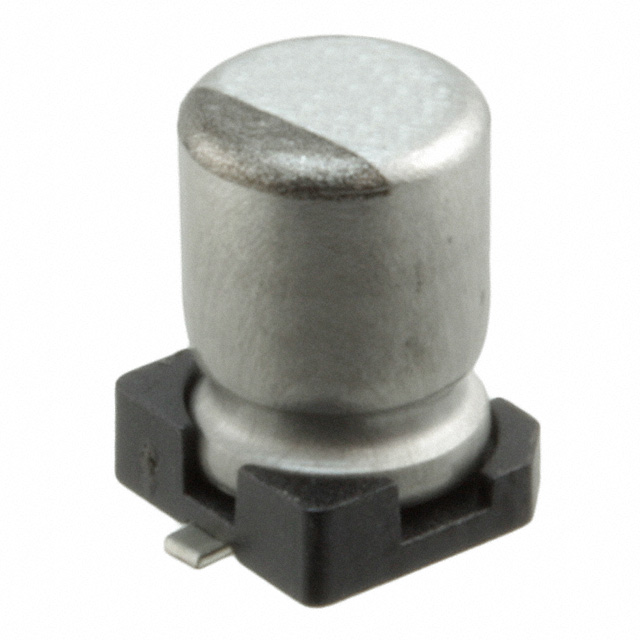

UUL1H0R1MCL1GS
0.1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UUL1H0R1MCL1GS |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.1 µF |
| Height - Seated (Max) | 0.24 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Size / Dimension Diameter | 0.157 in |
| Surface Mount Land Length | 0.169 in |
| Surface Mount Land Width | 0.169 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
