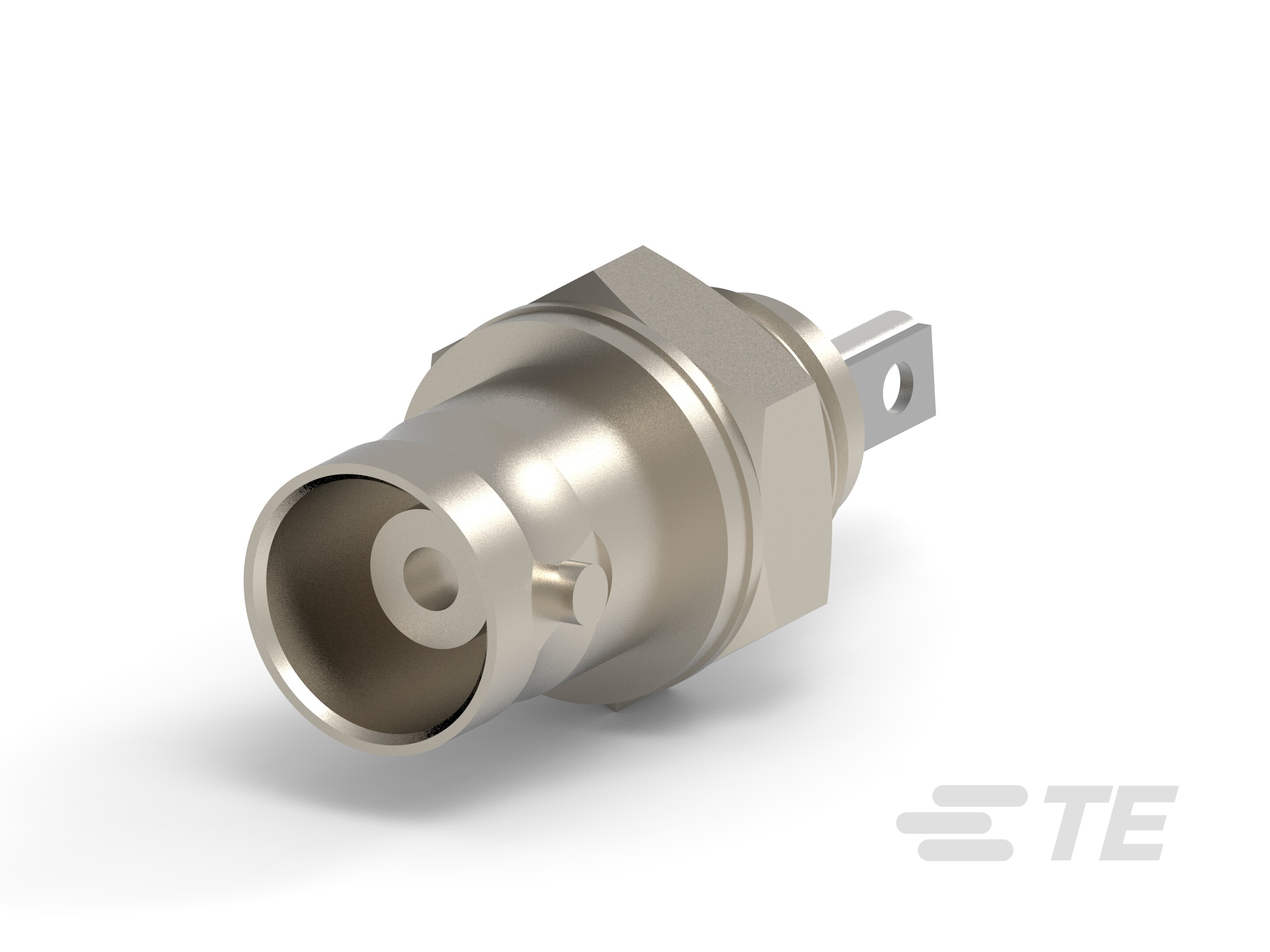

1-1337447-0
ActiveTE Connectivity AMP Connectors
CONN BNC 0HZ TO 4GHZ 50OHM SOLDER ST PANEL MOUNT RCP SILVER BOX
1-1337447-0
ActiveTE Connectivity AMP Connectors
CONN BNC 0HZ TO 4GHZ 50OHM SOLDER ST PANEL MOUNT RCP SILVER BOX
Description
General part information
1-1337447-0
BNC Connector, Jack, 50 ohm, Bayonet, 4 GHz, Cable-to-Panel, 1 Position, Panel Mount, -40 – 60 °C [-40 – 140 °F], Solder Terminal, Straight, Brass
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1337447-0 |
|---|---|
| Center Contact Material | Phosphor Bronze |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Features | Isolated |
| Frequency - Max | 4 GHz |
| Housing Color | Silver, White |
| Impedance | 50 Ohm |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
