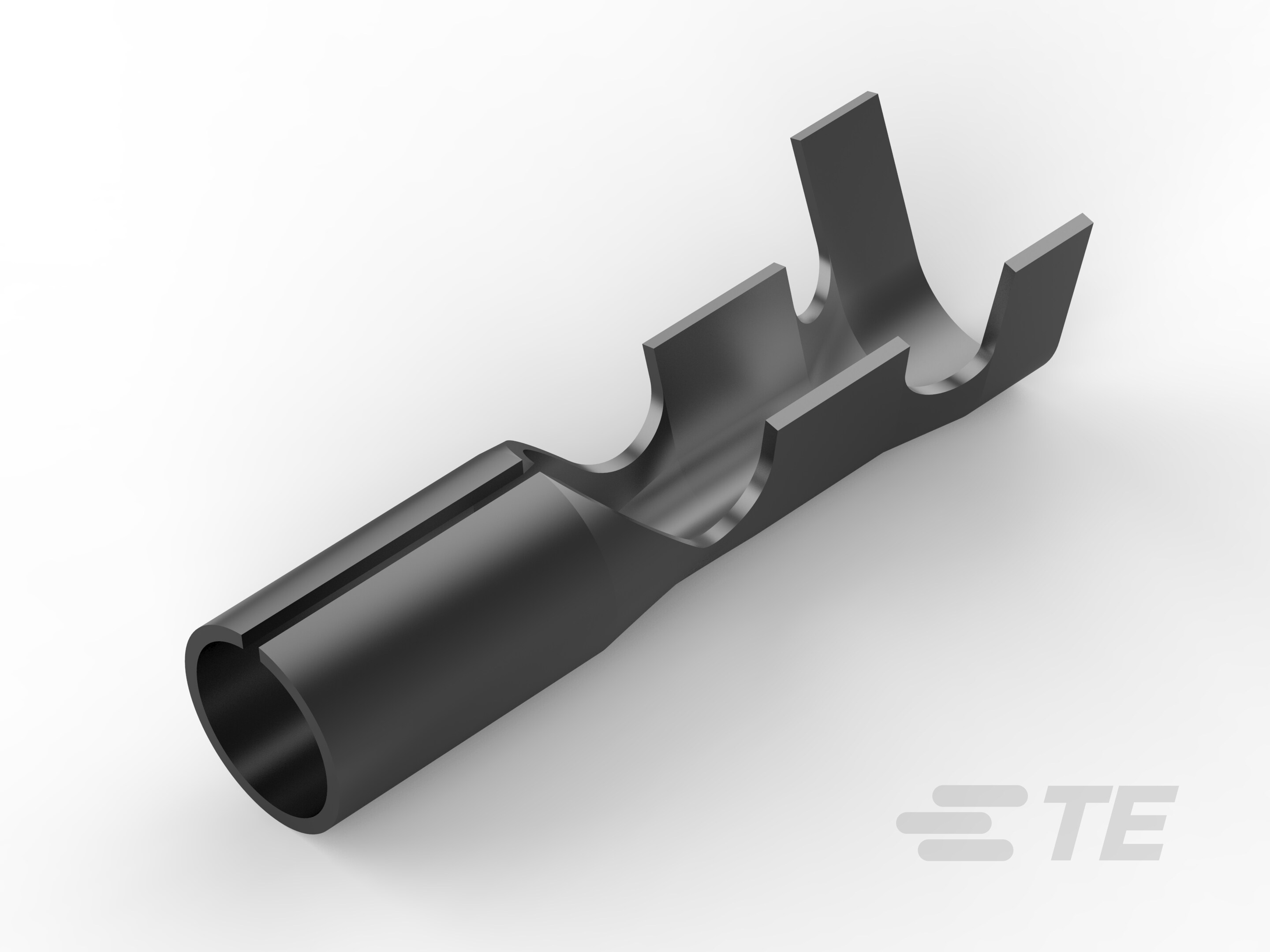

SHUR PLUG RECEPTACLE 20-16 AWG TPBR-170021-2

170021-2

Active
TE Connectivity AMP Connectors

SHUR-PLUG 14-20AWG BRASS F 18.5MM TIN BAG

Find alt
SHUR PLUG RECEPTACLE 20-16 AWG TPBR-170021-2

170021-2

Active
TE Connectivity AMP Connectors

SHUR-PLUG 14-20AWG BRASS F 18.5MM TIN BAG

Find alt

Description

General part information

170021-2

Shur-Plug, 4.7 mm [.185 in] Pin Diameter, 20 – 14 AWG, .5 – 2.27 mm² Wire, 1021 – 4106 CMA, Open Barrel, Tin Plating, SHUR-PLUG 180

Technical Specifications

Parameters and characteristics for this part

Specification170021-2
Contact FinishBrass
Contact MaterialTin
Diameter - Barrel0.14 in
InsulationNon-Insulated
Length - Barrel0.343 in
Length - Overall0.709 in
Terminal TypeReceptacle (Socket), Female
TerminationCrimp
Wire Gauge (AWG) (Max)20.5 AWG
Wire Gauge (AWG) (Min)14 AWG
