125-401
ActiveAltech Corporation
PC77-6, 65X65X57MM ENCLOSURE
125-401
ActiveAltech Corporation
PC77-6, 65X65X57MM ENCLOSURE
Description
General part information
125-401

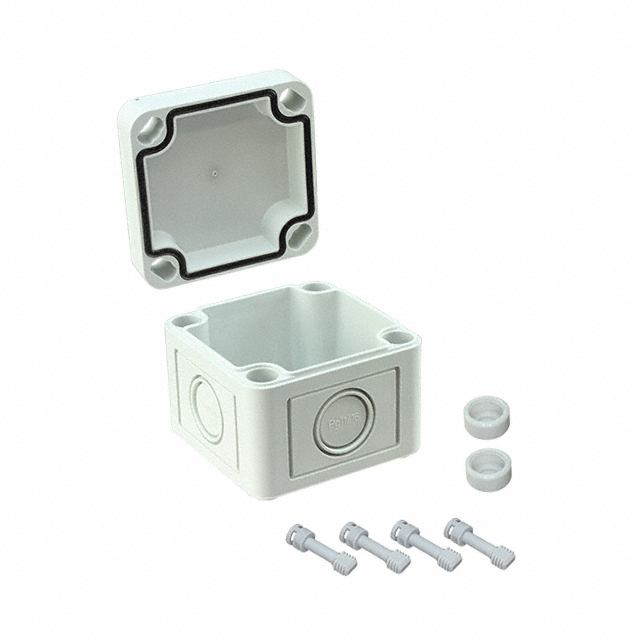

Box Plastic, Polycarbonate (PC) Gray Hand Held, Cover Included 2.560" L x 2.560" W (65.02mm x 65.02mm) X 2.240" (56.90mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 125-401 |
|---|---|
| Area (L x W) | 6.56 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included, Hand Held |
| Features | Sealing Gasket, Knockouts |
| Height | 2.24 in |
| Material | Polycarbonate (PC), Plastic |
| Ratings | NEMA 4X, IP66 |
| Size / Dimension Length | 2.56 in |
| Size / Dimension Width | 2.56 in |
