4-794681-0
ActiveTE Connectivity AMP Connectors

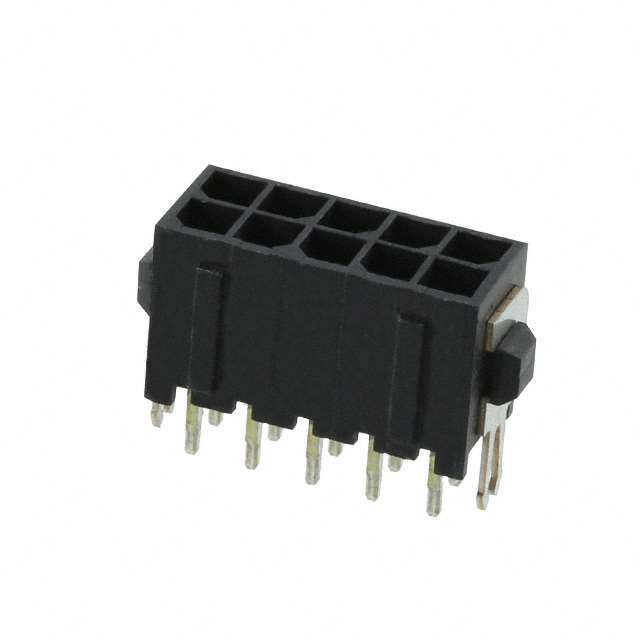

CONN HEADER VERT 10POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
4-794681-0
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 10POS 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-794681-0 | 794681 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold, Gold or Gold-Palladium |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Post [x] | 3.18 mm | 3.18 mm |
| Contact Length - Post [x] | 0.125 in | 0.125 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 9.25 mm | 9.25 mm |
| Insulation Height | 0.364 in | 0.364 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 10 | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794681 Series
CONN HEADER VERT 10POS 3MM
| Part | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Mounting Type | Shrouding | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Material | Insulation Color | Number of Positions | Insulation Height | Insulation Height | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Insulation Material | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Connector Type | Contact Finish - Post | Material Flammability Rating | Style | Number of Positions Loaded | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-794681-0 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | 0.118 in | 3 mm | Brass | Black | 10 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin | UL94 V-0 | Board to Cable/Wire | All | Gold | |
TE Connectivity AMP Connectors 4-794681-4 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | 0.118 in | 3 mm | Brass | Black | 14 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin | UL94 V-0 | Board to Cable/Wire | All | Gold | |
TE Connectivity AMP Connectors 5-794681-4 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | 0.118 in | 3 mm | Brass | Black | 24 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin | UL94 V-0 | Board to Cable/Wire | All | Gold | |
TE Connectivity AMP Connectors 794681-6 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | 0.118 in | 3 mm | Brass | Black | 6 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin-Lead | UL94 V-0 | Board to Cable/Wire | All | Gold | |
TE Connectivity AMP Connectors 5-794681-0 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | 0.118 in | 3 mm | Brass | Black | 20 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin | UL94 V-0 | Board to Cable/Wire | All | Gold | |
TE Connectivity AMP Connectors 4-794681-8 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | 0.118 in | 3 mm | Brass | Black | 18 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin | UL94 V-0 | Board to Cable/Wire | All | Gold | |
TE Connectivity AMP Connectors 794681-8 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | 0.118 in | 3 mm | Brass | Black | 8 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin-Lead | UL94 V-0 | Board to Cable/Wire | All | Gold, Gold or Gold-Palladium | |
TE Connectivity AMP Connectors 794681-2 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | Brass | Black | 2 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin-Lead | UL94 V-0 | Board to Cable/Wire | All | Gold | |||
TE Connectivity AMP Connectors 3-794681-4 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | 0.118 in | 3 mm | Brass | Black | 4 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin | UL94 V-0 | Board to Cable/Wire | All | Gold | |
TE Connectivity AMP Connectors 2-794681-4 | 250 VDC | 2.54 µm | 100 µin | 3 mm | 0.118 in | Male Pin | Through Hole | Shrouded - 4 Wall | Square | 0.118 in | 3 mm | Brass | Black | 24 | 9.25 mm | 0.364 in | General Purpose | 15 µin | 0.38 µm | Locking Ramp | Nylon, Polyamide (PA) | Varies by Wire Gauge | -40 °C | 105 ░C | Solder | 3.18 mm | 0.125 in | 2 | Header | Tin-Lead | UL94 V-0 | Board to Cable/Wire | All | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.16 | |
| 10 | $ 2.62 | |||
| 80 | $ 2.21 | |||
| 440 | $ 1.92 | |||
| 945 | $ 1.81 | |||
| 4900 | $ 1.58 | |||
Description
General part information
794681 Series
Connector Header Through Hole 10 position 0.118" (3.00mm)
