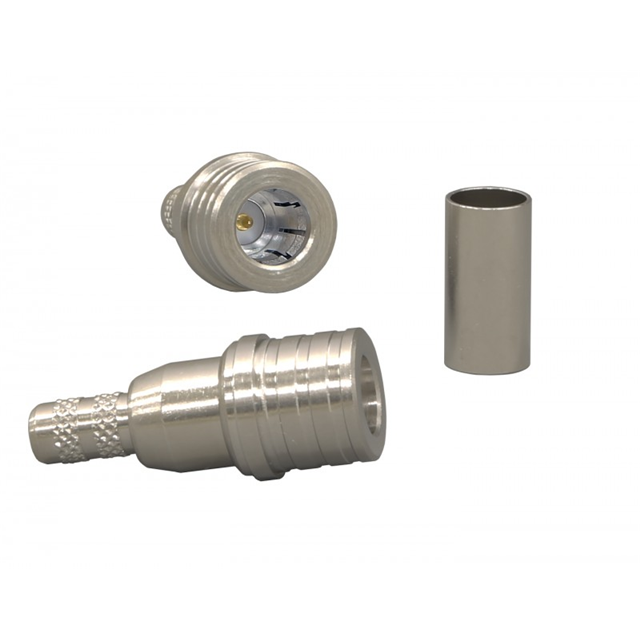

QMACRIMP1

Active

Pulse Electronics

QMA CRIMP FOR RG58

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QMACRIMP1	- Series

1st Connector	-	RP-SMA Jack
1st Connector Mounting Feature	-	Bulkhead - Front Side Nut
1st Connector Mounting Type	-	Panel Mount
1st Contact Gender	-	Male
2nd Connector	-	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	-	Free Hanging (In-Line)
2nd Contact Gender	-	Female
Adapter Series	-	Mini to FME, UHF, BNC to FME, N to FME, TNC to FME, SMA to FME
Adapter Type	-	Plug to Plug
Antenna Type	-	Whip, Straight
Cable Group	RG-58	RG-58, RG-174, 58, RG-8
Cable Type	-	1.13mm OD Coaxial Cable
Center Gender	-	Male to Male
Color	-	Black
Connector Style	-	TNC, SMA, FME, BNC, UHF, N Type
Connector Type	Male Pin, Plug	Female Socket, Jack, Male Pin, Plug
Contact Termination	Crimp	Crimp, Solder
Conversion Type	-	Between Series
Convert From (Adapter End)	-	UHF Mini Plug, Male Pin, BNC Plug, Male Pin, N Plug, Male Pin, SMA Plug, Male Pin
Convert To (Adapter End)	-	Male Pin, FME Plug
Fastening Type	Snap-On	Bayonet Lock, Threaded, Snap-On
Frequency - Max [Max]	6000 MHz	6000 MHz
Frequency (Center/Band)	-	324 - 925 MHz
Frequency Group	-	1 GHz
Frequency Group	-	300 MHz
Frequency Range	-	512 - 960 MHz
Frequency Range	-	136 - 890 MHz
Gain	-	2 dBic
Height (Max)	-	3.5 - 22 inches
Height (Max)	-	88.9 - 558.8 mm
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Length	-	76.2 - 228.6 mm
Length	-	3 - 9 in
Length	-	381 mm
Length	-	15 in
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Magnetic
Number of Bands	-	1
Number of Ports	1	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Power - Max	-	200 W
Return Loss	-	-10 dB
Shield Termination	Crimp	Crimp, Solder
Style	-	Straight, U.FL (UMCC) to RP-SMA
VSWR	-	1

- Series

ADAPTER, FME TO MPL (MINI UHF)

Part	Convert To (Adapter End)	Style	Adapter Type	Adapter Series	Center Gender	Conversion Type	Convert From (Adapter End)	Mounting Type	Frequency Group [Max]	Frequency Group [Min]	Power - Max [Max]	Number of Bands	Gain	Frequency (Center/Band)	Return Loss	Height (Max) [Max]	Height (Max)	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Contact Termination	Number of Ports	Connector Type	Connector Style	Shield Termination	Cable Group	Cable Type	Color	1st Connector Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector Mounting Type	1st Connector	2nd Connector	1st Contact Gender	2nd Contact Gender	1st Connector Mounting Type	Length	Length	Fastening Type	Housing Color
Pulse Electronics FM	FME Plug, Male Pin	Straight	Plug to Plug	Mini to FME, UHF	Male to Male	Between Series	UHF Mini Plug, Male Pin	Free Hanging (In-Line)
Pulse Electronics Q900B								Magnetic	1 GHz	300 MHz	200 W	1	2 dBic	925 MHz	-10 dB	3.5 inches	88.9 mm	Whip, Straight	960 MHz	890 MHz
Pulse Electronics TNCCBJ																					Crimp	1	Female Socket, Jack	TNC	Crimp	RG-58
Pulse Electronics W9006		U.FL (UMCC) to RP-SMA																									1.13mm OD Coaxial Cable	Black	Bulkhead - Front Side Nut	85 °C	-40 °C	Free Hanging (In-Line)	RP-SMA Jack	U.FL (UMCC) Plug, Right Angle	Male	Female	Panel Mount	152.4 mm	6 in
Pulse Electronics Q900								Magnetic	1 GHz	300 MHz	200 W	1	2 dBic	925 MHz	-10 dB	3.5 inches	88.9 mm	Whip, Straight	960 MHz	890 MHz
Pulse Electronics FB	FME Plug, Male Pin	Straight	Plug to Plug	BNC to FME	Male to Male	Between Series	BNC Plug, Male Pin	Free Hanging (In-Line)																																Bayonet Lock, Threaded
Pulse Electronics W9003		U.FL (UMCC) to RP-SMA																									1.13mm OD Coaxial Cable	Black	Bulkhead - Front Side Nut	85 °C	-40 °C	Free Hanging (In-Line)	RP-SMA Jack	U.FL (UMCC) Plug, Right Angle	Male	Female	Panel Mount	76.2 mm	3 in
Pulse Electronics SMACJ								Free Hanging (In-Line)													Crimp	1	Female Socket, Jack	SMA	Crimp	RG-58
Pulse Electronics SMACP58								Free Hanging (In-Line)													Crimp	1	Male Pin, Plug	SMA	Crimp	RG-58
Pulse Electronics FMECRIMP								Free Hanging (In-Line)													Crimp	1	Female Socket, Jack	FME	Crimp	RG-58															Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.82
		10	$ 9.77
		25	$ 9.32
		100	$ 8.09
		250	$ 7.73
		500	$ 7.04
		1000	$ 6.14

Description

General part information

- Series

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
