HW Series

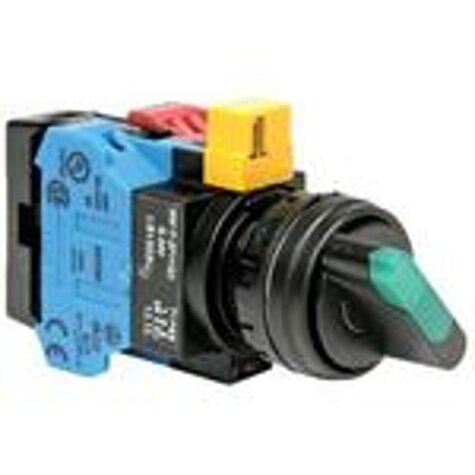

22MM SELECTOR SWITCH LIGHTED ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | HW1F-3F04QD-W-24V |
|---|---|
| Circuit | 4PST-NC |
| Color | White |
| Current Rating | 10 A |
| Illumination | Illuminated |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On-Off, Off-On-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 110 V |
| Voltage Rating - DC | 24 V |
