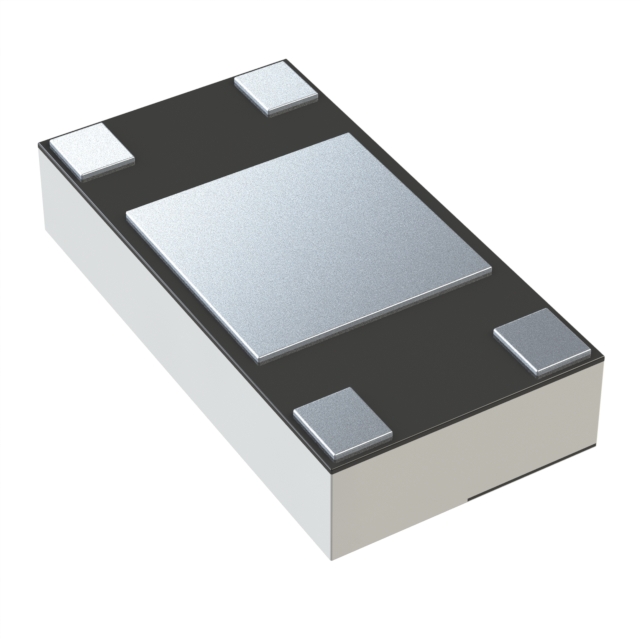

BP1206A28G0ANTR
ActiveKYOCERA AVX
RF FILTER BAND PASS 28GHZ 1206
BP1206A28G0ANTR
ActiveKYOCERA AVX
RF FILTER BAND PASS 28GHZ 1206
Description
General part information
BP1206A28G0ANTR
28GHz Center Frequency Band Pass RF Filter (Radio Frequency) 850MHz Bandwidth -2.5dB 1206 (3216 Metric), 5 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | BP1206A28G0ANTR |
|---|---|
| Bandwidth | 850 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 28 GHz |
| Height (Max) | 0.022 in |
| Insertion Loss | -2.5 dB |
| Mounting Type | Surface Mount |
| Package Name | 1206 |
| Pad Count | 5 PC Pad |
| Size / Dimension Length | 0.122 in |
| Size / Dimension Width | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
