Description
General part information
1SNG618008R0000

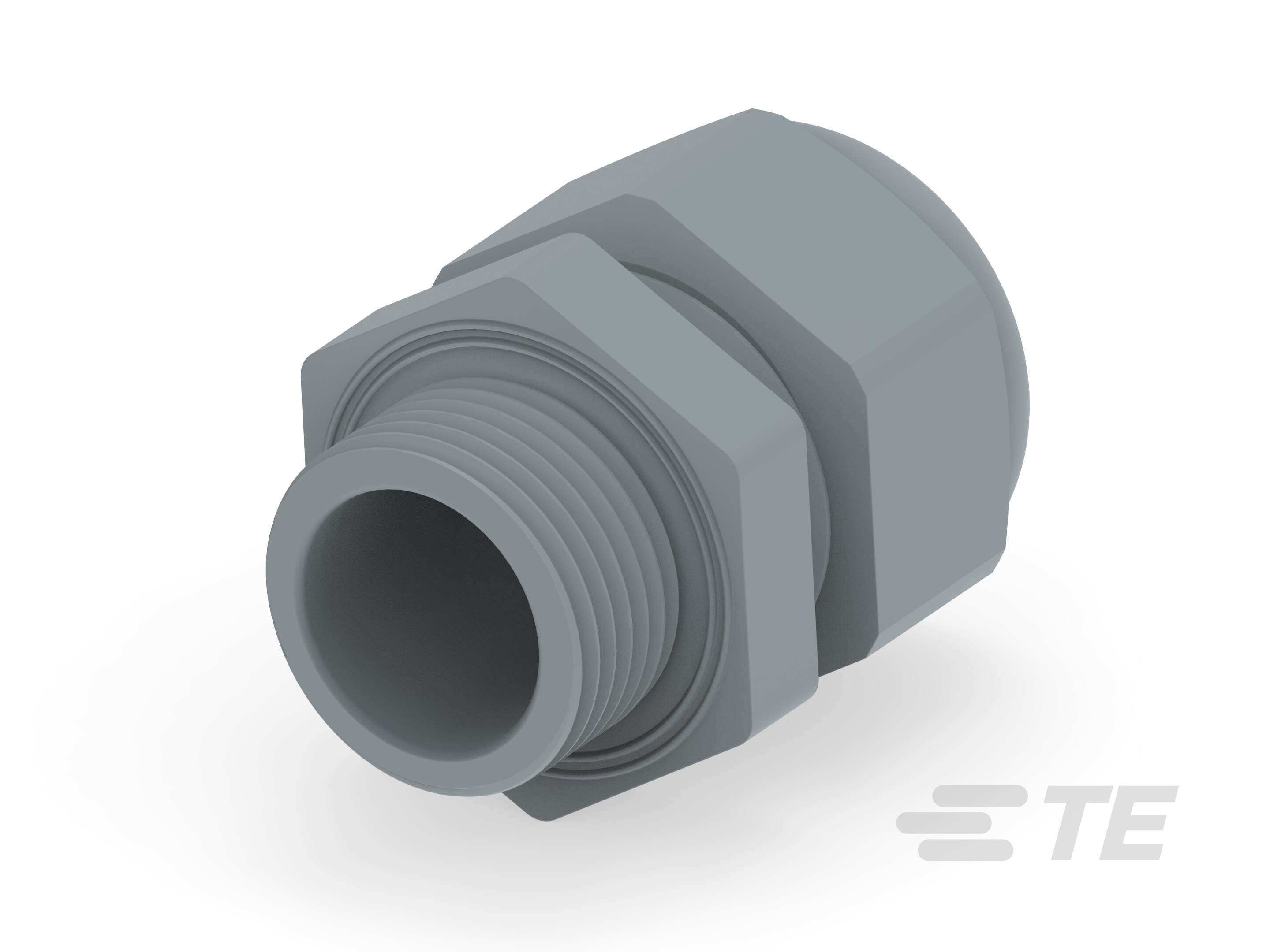

Cable Gland, RJ45 Type, PA 6, 3 – 6 mm Clamping Range, Gray, IP68
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNG618008R0000 |
|---|---|
| Color | Gray |
| Material | Polyamide (PA6), Nylon 6 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -20 °C |
| Outside Cable Diameter (Max) | 0.236 in |
| Outside Cable Diameter (Min) | 0.118 in |
| Panel Hole Size | 1.28 in |
| Thread Diameter | 25 mm |
| Thread Length | 0.315 in |
| Thread Pitch | 1.5 mm |
| Type | Cable Gland |
