Description
General part information

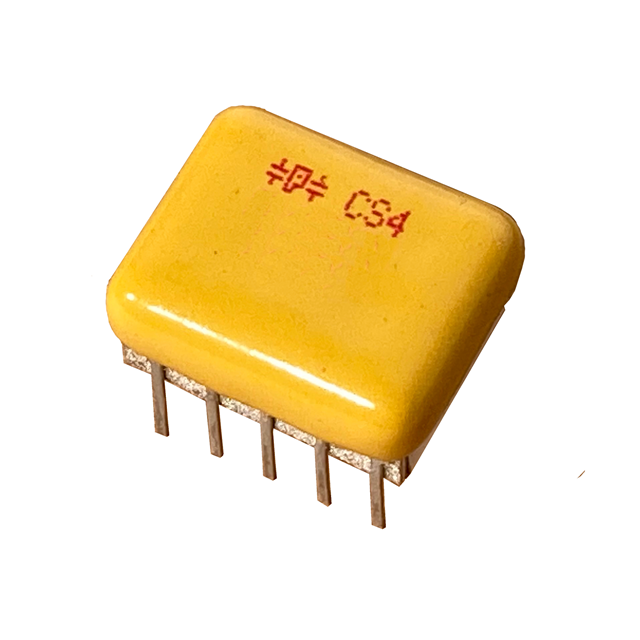

106K050CS4-FA
10 µF Film Capacitor 35V 50V Polyester, Metallized 10-DIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 106K050CS4-FA |
|---|---|
| Applications | DV/DT, RFI Suppression, EMI, High Pulse |
| Capacitance | 10 µF |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | 3 mOhm |
| Features | High Temperature, Low ESR |
| Height - Seated (Max) | 0.319 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 10-DIP |
| Size / Dimension Length | 0.618 in |
| Size / Dimension Width | 0.5 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 35 V |
| Voltage Rating - DC | 50 V |
