C13LPSCHRA-10-2M
ActivePasternack

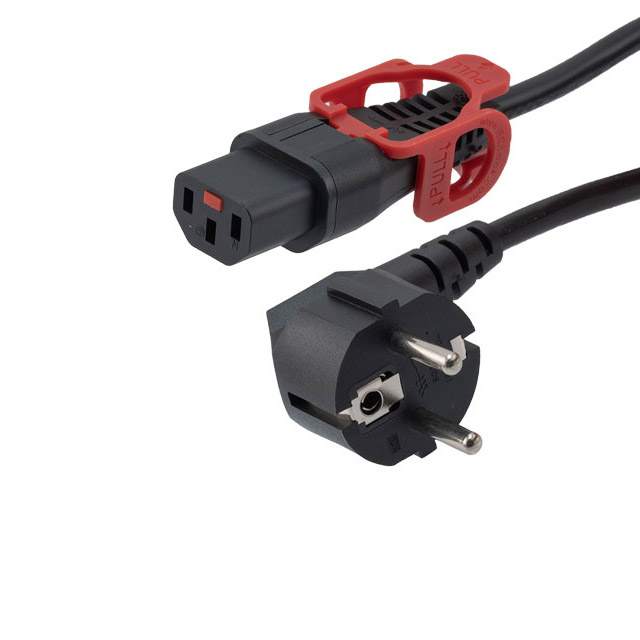

MAINS POWER CORD, 90° CEE 7/7 PLUG TO IEC 320 C13, 2 M, 10 A, 250 V, BLACK
C13LPSCHRA-10-2M
ActivePasternack
MAINS POWER CORD, 90° CEE 7/7 PLUG TO IEC 320 C13, 2 M, 10 A, 250 V, BLACK
Description
General part information
C13LPSCHRA-10-2M
6.56' (2.00m) Power Cord Black IEC 884/CEE7-VII, Right Angle To IEC 320-C13 H05VV-F3G1.0
Technical Specifications
Parameters and characteristics for this part
| Specification | C13LPSCHRA-10-2M |
|---|---|
| 1st Connector | IEC 884/CEE7-VII, Right Angle |
| 2nd Connector | IEC 320-C13 |
| Color | Black |
| Cord Type | H05VV-F3G1.0 |
| Current Rating | 10 A |
| Length | 6.56 ft |
| Number of Conductors | 3 |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 250 V |
| Wire Gauge | 17 AWG |
