P004-015

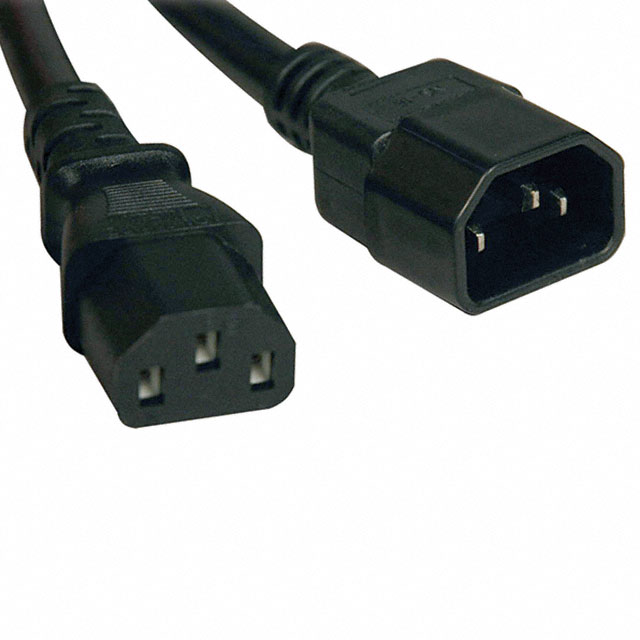

ActiveMAINS POWER CORD, IEC 60320 C14, IEC 60320 C13, 4.6 M, 10 A, 250 VAC, BLACK
P004-015
ActiveMAINS POWER CORD, IEC 60320 C14, IEC 60320 C13, 4.6 M, 10 A, 250 VAC, BLACK
Description
General part information
P004-015
The P004-015 is a 4.6m standard computer Power Extension Cord offers PC users a solution to its power connectivity problems. This handy cord can be used to extend the power cord on any PC or device with a C14 plug or to connect your C14 PC or device directly to the C13 port on your PDU or UPS. It features an IEC-320-C14 to IEC-320-C13 connection.
Technical Specifications
Parameters and characteristics for this part
| Specification | P004-015 |
|---|---|
| 1st Connector | IEC 320-C14 |
| 2nd Connector | IEC 320-C13 |
| Approval Agency Marking | CSA, cUL, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 10 A |
| Length | 15 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating (AC) Maximum | 250 VAC |
| Voltage Rating (AC) Minimum | 100 VAC |
| Wire Gauge | 18 AWG |
