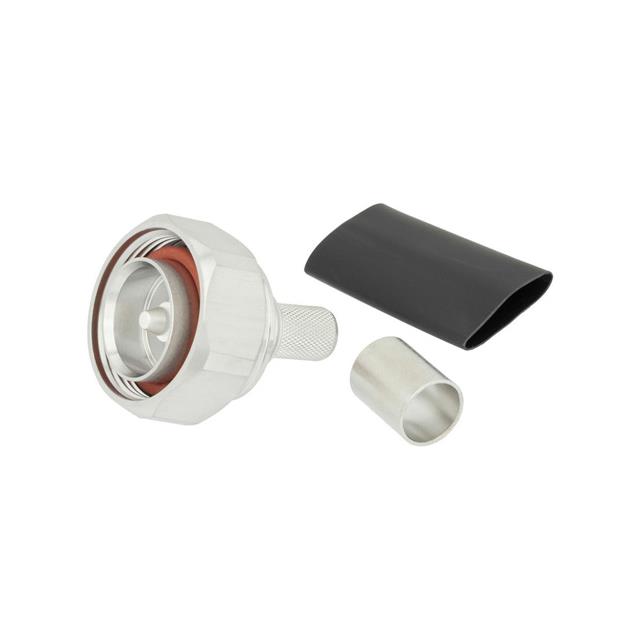

EZ-400-716M-X-LC
ActivePasternack
7/16 DIN MALE CONNECTOR CRIMP/NO
EZ-400-716M-X-LC
ActivePasternack
7/16 DIN MALE CONNECTOR CRIMP/NO
Description
General part information
EZ-400-716M-X-LC
7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ-400-716M-X-LC |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | LMR-400 |
| Center Contact Material | Copper |
| Center Contact Plating | Silver |
| Connector Style | 7/16 DIN |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 3 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.05 dB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Crimp |
