9001SKR25RH6
ActiveSCHNEIDER ELECTRIC
PUSHBUTTON 600VAC 10AMP 30MM SK
9001SKR25RH6
ActiveSCHNEIDER ELECTRIC
PUSHBUTTON 600VAC 10AMP 30MM SK
Description
General part information
9001SKR25RH6

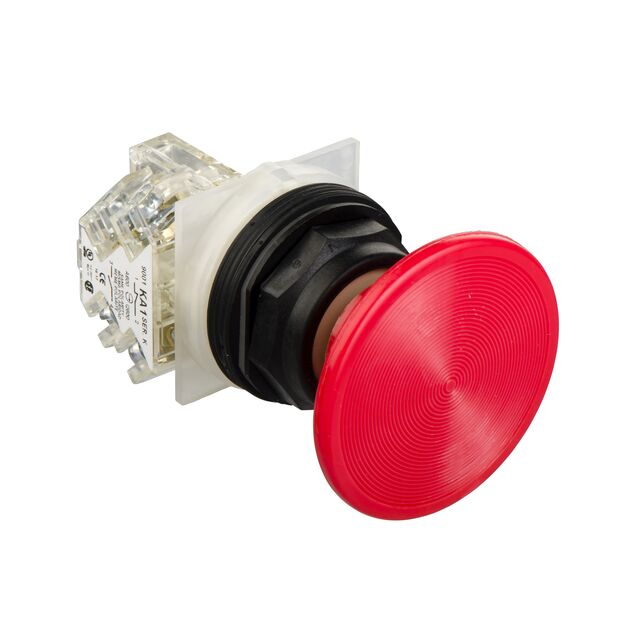

Pushbutton Switch SPST-NC Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001SKR25RH6 |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | SPST-NC |
| Color - Actuator/Cap | Red |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Type | Standard |
