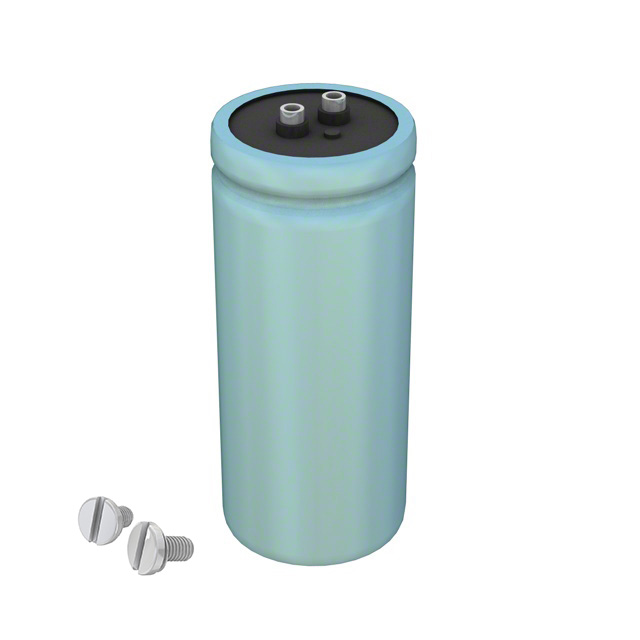

CGR103U050V4C
ActiveCornell Dubilier Knowles
CAP ALUM 10000UF 50V SCREW CHAS
CGR103U050V4C
ActiveCornell Dubilier Knowles
CAP ALUM 10000UF 50V SCREW CHAS
Description
General part information
CGR103U050V4C
10000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 11.3mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CGR103U050V4C |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 µF |
| ESR (Equivalent Series Resistance) | 11.3 mOhm |
| Height - Seated (Max) | 4.125 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 18.5 A, 21.275 A |
| Size / Dimension Diameter | 2 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 50 V |
