Description
General part information

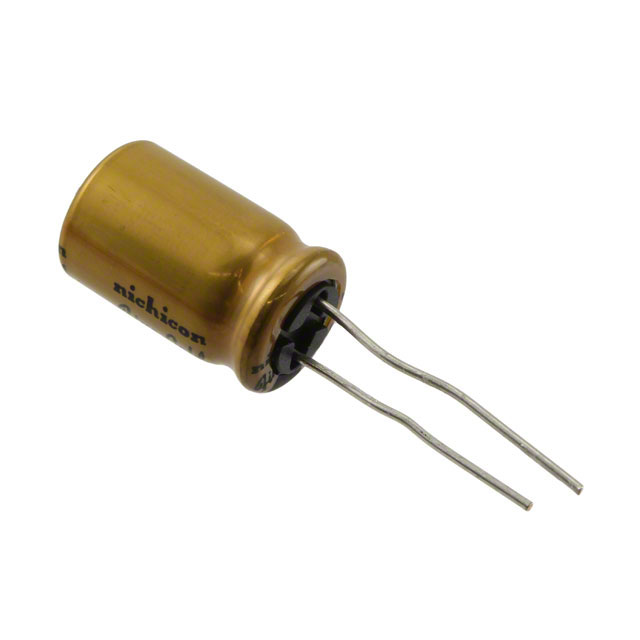

UFG1V331MHM1TO
330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UFG1V331MHM1TO |
|---|---|
| Applications | Audio |
| Capacitance | 330 µF |
| Height - Seated (Max) | 0.866 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 446 mA |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
