672D476H040CD2D
ActiveVishay Dale
CAP ALUM 47UF 40V RADIAL TH
672D476H040CD2D
ActiveVishay Dale
CAP ALUM 47UF 40V RADIAL TH
Description
General part information
672D476H040CD2D

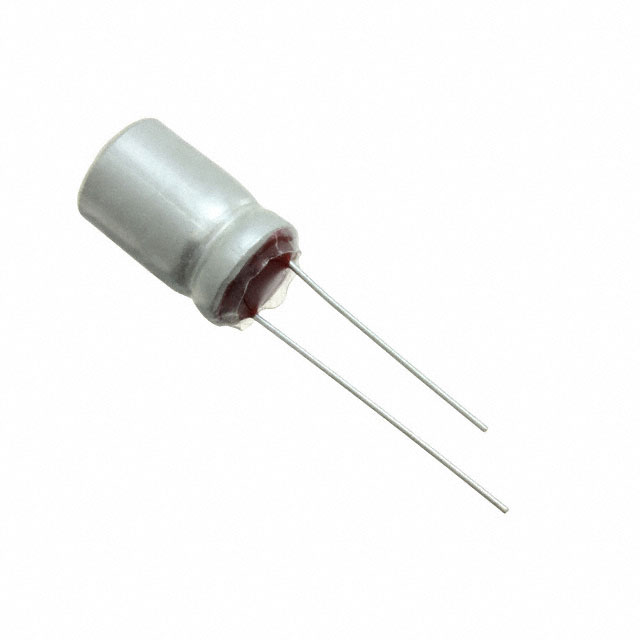

47 µF 40 V Aluminum Electrolytic Capacitors Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | 672D476H040CD2D |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| Height - Seated (Max) | 0.669 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 0.394 in |
| Voltage - Rated | 40 V |
