NC6-P107-03
ActiveTE Connectivity AMP Connectors

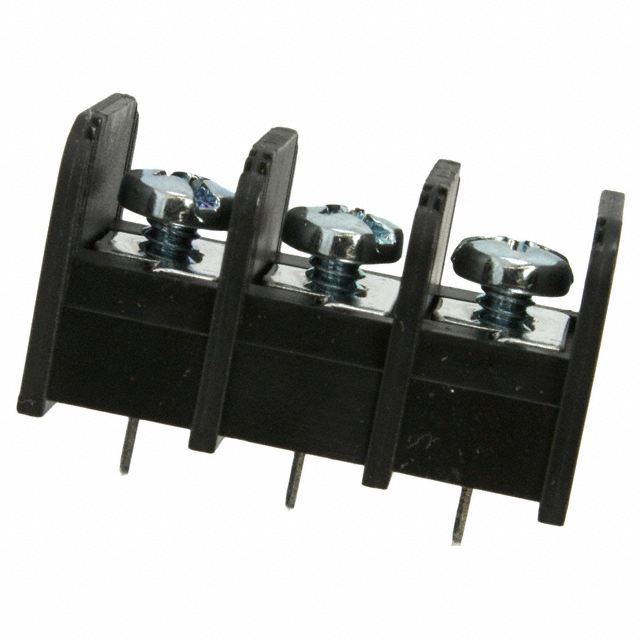

CONN BARRIER STRIP 3CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NC6-P107-03
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRIP 3CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NC6-P107-03 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating (Amps) | 20 A |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits | 3 |
| Number of Rows | 1 |
| Number of Wire Entries | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 9.53 mm |
| Pitch [x] | 0.375 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc, Clear Chromate |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.24 | |
| 10 | $ 1.69 | |||
| 25 | $ 1.57 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.38 | |||
| 300 | $ 1.21 | |||
NC6-P Series
CONN BARRIER STRIP 3CIRC 0.375"
| Part | Number of Rows | Material - Insulation | Terminal Screw Material | Top Termination | Material Flammability Rating | Terminal Block Type | Number of Circuits | Number of Wire Entries | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Terminal Screw Finish | Operating Temperature [Min] | Operating Temperature [Max] | Barrier Type | Color | Pitch [x] | Pitch [x] | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors NC6-P107-03 | 1 | Nylon, Polyamide (PA) | Steel | Screws | UL94 V-0 | Barrier Block | 3 | 3 | PC Pin | 12 AWG | 22 AWG | Through Hole | Clear Chromate, Zinc | -40 °C | 105 ░C | 2 Wall (Dual) | Black | 9.53 mm | 0.375 in | 20 A | 300 VDC |
Description
General part information
NC6-P Series
3 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
