PCIH38M400A1/AA
ActiveMcGill Microwave Systems
RECTANGULAR POWER CONNECTOR, 38 CONTACTS, PCIH SERIES, PANEL PCB MOUNT, THROUGH HOLE RIGHT ANGLE
PCIH38M400A1/AA
ActiveMcGill Microwave Systems
RECTANGULAR POWER CONNECTOR, 38 CONTACTS, PCIH SERIES, PANEL PCB MOUNT, THROUGH HOLE RIGHT ANGLE
Description
General part information
PCIH38M400A1/AA

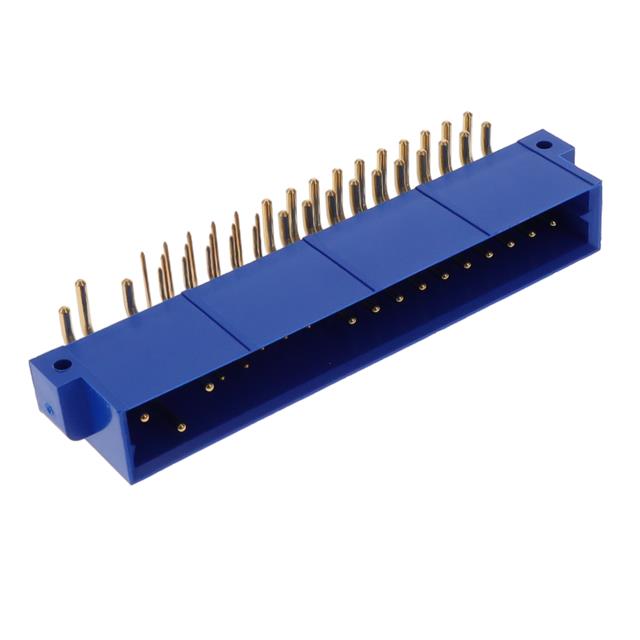

38 Connector Header, Male Pins Through Hole, Right Angle Blue CompactPCI®
Technical Specifications
Parameters and characteristics for this part
| Specification | PCIH38M400A1/AA |
|---|---|
| Color | Blue |
| Connector Style | CompactPCI® |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Current Rating | 40 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 38 |
| Number of Positions Loaded | All |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Power Contacts (Typical) | 15 |
| Signal Contacts (Typical) | 23 |
| Termination | Solder |
