XCZU43DR-1FFVE1156E
ActiveAMD / Xilinx
IC ZUP RFSOC A53 FPGA 1156BGA
XCZU43DR-1FFVE1156E
ActiveAMD / Xilinx
IC ZUP RFSOC A53 FPGA 1156BGA
Description
General part information
XCZU43DR-1FFVE1156E
Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ System On Chip (SOC) IC Zynq® UltraScale+™ RFSoC Zynq®UltraScale+™ FPGA, 930K+ Logic Cells 500MHz, 1.2GHz 1156-FCBGA (35x35)
Technical Specifications
Parameters and characteristics for this part
| Specification | XCZU43DR-1FFVE1156E |
|---|---|
| Architecture | FPGA, MCU |
| Connectivity | USART, SD, USB OTG, CANbus, MMC, EBI, UART, Ethernet, SPI, I2C, SDIO, EMI |
| Core Processor | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ |
| Number of I/O | 366 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | 0 °C |

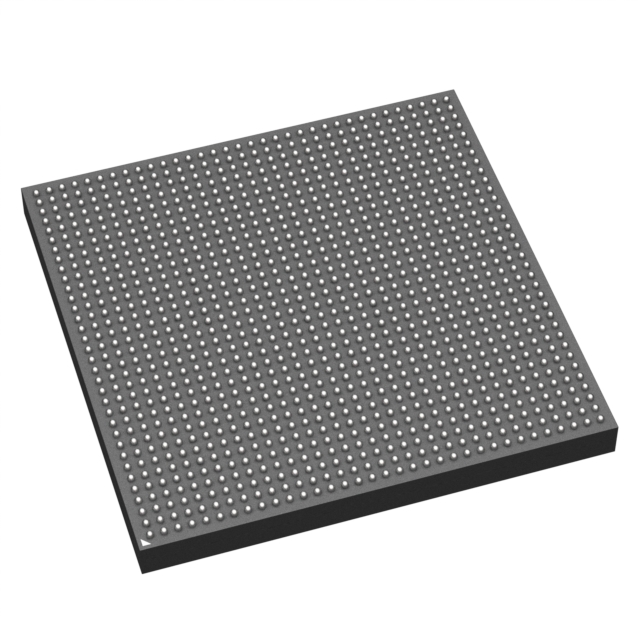

| Package / Case | 1156-BBGA, FCBGA |
| Package Length | 35 mm |
| Package Name | 1156-FCBGA |
| Package Width | 35 mm |
| Peripherals | DDR, DMA, PCIe |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells |
| RAM Size | 256 KB |
| Speed | 1.2 GHz, 500 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
