UX7021E0125.000000

Active

Diodes Inc

XTAL OSC XO 125.0000MHZ LVPECL

Search across all available documentation for this part.

Active

Diodes Inc

XTAL OSC XO 125.0000MHZ LVPECL

Technical Specifications

Parameters and characteristics for this part

Specification	UX7021E0125.000000

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	10 mA
Current - Supply (Max) [Max]	70 mA
Frequency	125 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	2 mm
Height - Seated (Max) [Max] [z]	0.079 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVPECL

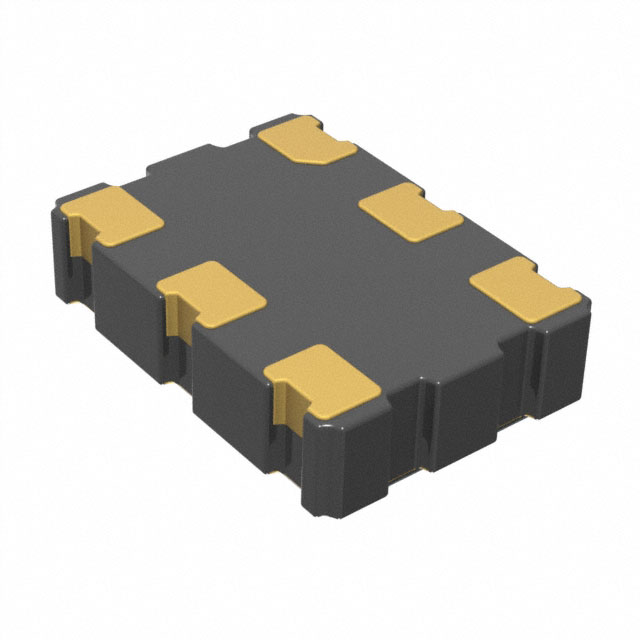

Package / Case	6-SMD, No Lead
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Current - Supply (Max) [Max]	Base Resonator	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Output	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Function	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Frequency Stability	Current - Supply (Disable) (Max) [Max]	Frequency	Type
Diodes Inc UX7021E0125.000000	70 mA	Crystal	2 mm	0.079 in	LVPECL	Surface Mount	7 mm	5 mm	0.276 "	0.197 "	Enable/Disable	6-SMD No Lead	85 °C	-40 °C	3.3 V	50 ppm	10 mA	125 MHz	XO (Standard)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 4.09

General part information

125 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
