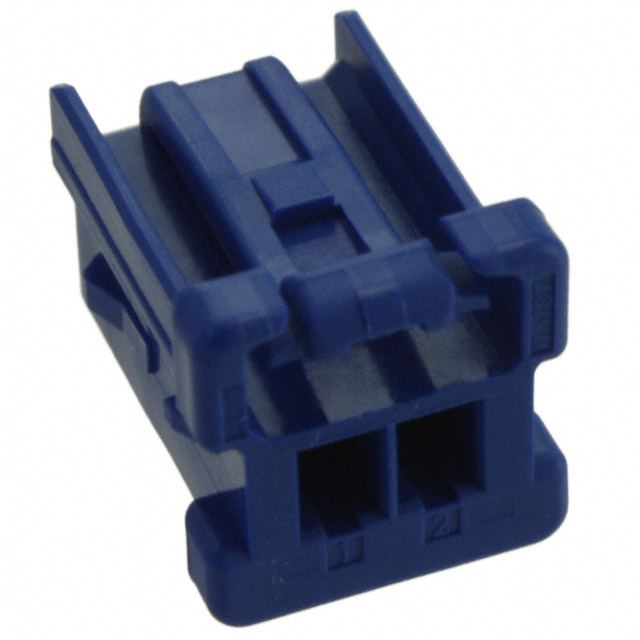

XMAP-02V-3-E(M8AM)

Active

JST Sales America Inc.

CONN PLUG HSG 2POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet +1

XMAP-02V-3-E(M8AM)

Active

JST Sales America Inc.

CONN PLUG HSG 2POS 2.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XMAP-02V-3-E(M8AM)	XMAP Series

Color	Blue	Red, White, Blue
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 6
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

XMAP Series

CONN PLUG HSG 3POS 2.50MM

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Insulation Material	Note	Connector Type	Contact Type	Contact Termination	Number of Rows	Pitch [x]	Pitch [x]	Fastening Type	Number of Positions
JST Sales America Inc. XMAP-03V-2-R(M8AM)	Free Hanging (In-Line)	-25 °C	85 °C	Red	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Plug	Female Socket	Crimp	1	0.098 in	2.5 mm	Latch Lock
JST Sales America Inc. XMAP-04V-S(M8AM)	Free Hanging (In-Line)	-25 °C	85 °C	White	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Plug	Female Socket	Crimp	1	0.098 in	2.5 mm	Latch Lock	4
JST Sales America Inc. XMAP-03V-1-S(M8AM)	Free Hanging (In-Line)	-25 °C	85 °C	White	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Plug	Female Socket	Crimp	1	0.098 in	2.5 mm	Latch Lock
JST Sales America Inc. XMAP-06V-S(M8AM)	Free Hanging (In-Line)	-25 °C	85 °C	White	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Plug	Female Socket	Crimp	1	0.098 in	2.5 mm	Latch Lock	6
JST Sales America Inc. XMAP-05V-E(M8AM)	Free Hanging (In-Line)	-25 °C	85 °C	Blue	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Plug	Female Socket	Crimp	1	0.098 in	2.5 mm	Latch Lock
JST Sales America Inc. XMAP-05V-S(M8AM)	Free Hanging (In-Line)	-25 °C	85 °C	White	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Plug	Female Socket	Crimp	1	0.098 in	2.5 mm	Latch Lock
JST Sales America Inc. XMAP-02V-1-S(M8AM)	Free Hanging (In-Line)	-25 °C	85 °C	White	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Plug	Female Socket	Crimp	1	0.098 in	2.5 mm	Latch Lock	2
JST Sales America Inc. XMAP-02V-3-E(M8AM)	Free Hanging (In-Line)	-25 °C	85 °C	Blue	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Plug	Female Socket	Crimp	1	0.098 in	2.5 mm	Latch Lock	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XMAP Series

2 Rectangular Connectors - Housings Plug Blue 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet

XMA Specification

Datasheet
