CMM-4030DT-26154-TR
ActiveSame Sky (Formerly CUI Devices)

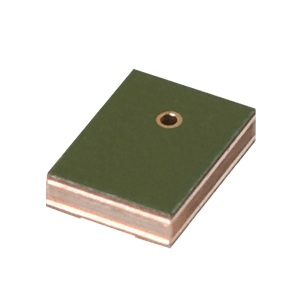

MIC OMNI-DIRECTIONAL 300OHM -26DB 2V RECTANGLE SOLDER PAD
CMM-4030DT-26154-TR
ActiveSame Sky (Formerly CUI Devices)
MIC OMNI-DIRECTIONAL 300OHM -26DB 2V RECTANGLE SOLDER PAD
Description
General part information
CMM-4030DT-26154-TR
MIC OMNI-DIRECTIONAL 300OHM -26DB 2V RECTANGLE SOLDER PAD
Technical Specifications
Parameters and characteristics for this part
| Specification | CMM-4030DT-26154-TR |
|---|---|
| Current - Supply | 540 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.043 in |
| Output Type | PDM, Digital |
| Port Location | Top |
| S/N Ratio | 65 dB |
| Sensitivity (Nominal) | -26 dB |
| Sensitivity Tolerance | 1 dB |
| Shape | Rectangular |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.118 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 2 VAC |
| Voltage Range (Max) | 3.6 V |
| Voltage Range (Min) | 1.6 V |
