Description
General part information
CA-BM04FJ-BM04FJ-3.3

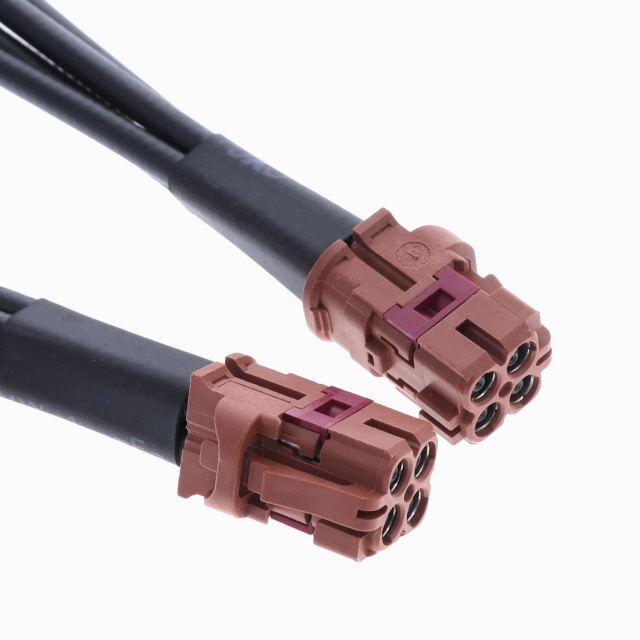

Cable Assembly Coaxial Mini Fakra to Mini Fakra 0.130" Flexible Cable 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-BM04FJ-BM04FJ-3.3 |
|---|---|
| 1st Connector | Fakra II (Gen 2.0) Mini Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Fakra II (Gen 2.0) Mini Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.13 " |
| Cable Impedance | 50 Ohms |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.13, 0.13 " |
| Color | Black |
| Features | Shielded |
| Length | 39.4 in |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Mini Fakra |
