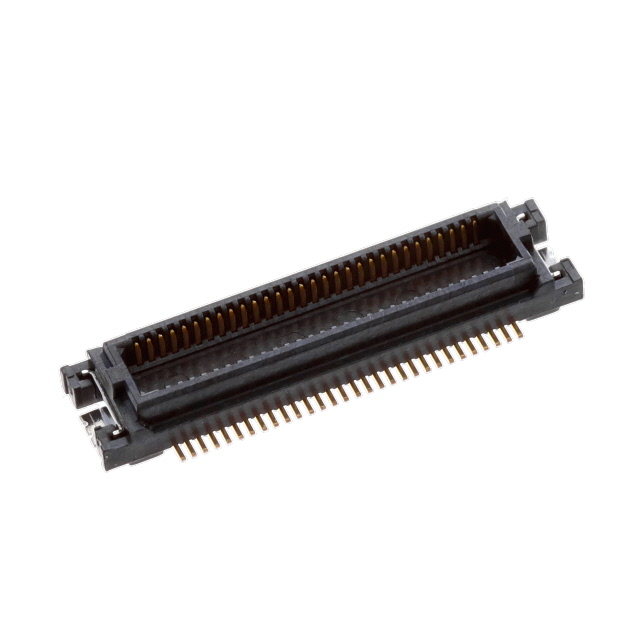

Specification	145046060635868+

Connector Type	Plug, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Pick and Place
Height Above Board	0.11 in
Mated Stacking Height	3.5 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch	0.02 in

145046 Series

...

Part	Number of Rows	Mounting Type	Number of Positions	Contact Finish	Features	Pitch	Mated Stacking Height	Height Above Board	Connector Type
KYOCERA AVX 145046060535868+	2	Surface Mount	60	Gold	Solder Retention	0.02 in	3.5 mm	0.11 in	Outer Shroud Contacts Plug
KYOCERA AVX 145046070630868+	2	Surface Mount	70	Gold	Pick and Place Solder Retention	0.02 in	3 mm	0.091 in	Outer Shroud Contacts Plug
KYOCERA AVX 145046100030868+	2	Surface Mount	100	Gold	Solder Retention	0.02 in	3 mm	0.091 in	Outer Shroud Contacts Plug
KYOCERA AVX 145046070535868+	2	Surface Mount	70	Gold	Solder Retention	0.02 in	3.5 mm	0.11 in	Outer Shroud Contacts Plug
KYOCERA AVX 145046050130868+	2	Surface Mount	50	Gold	Solder Retention	0.02 in	3 mm	0.091 in	Outer Shroud Contacts Plug
KYOCERA AVX 145046030535868+	2	Surface Mount	30	Gold	Solder Retention	0.02 in	3.5 mm	0.11 in	Outer Shroud Contacts Plug
KYOCERA AVX 145046120630868+	2	Surface Mount	120	Gold	Pick and Place Solder Retention	0.02 in	3 mm	0.091 in	Outer Shroud Contacts Plug
KYOCERA AVX 145046100535868+	2	Surface Mount	100	Gold	Solder Retention	0.02 in	3.5 mm	0.11 in	Outer Shroud Contacts Plug
KYOCERA AVX 145046020030868+	2	Surface Mount	20	Gold		0.02 in	3 mm	0.091 in	Outer Shroud Contacts Plug
KYOCERA AVX 145046030045868+	2	Surface Mount	30	Gold	Solder Retention	0.02 in	4.5 mm	0.15 in	Outer Shroud Contacts Plug
