Description
General part information

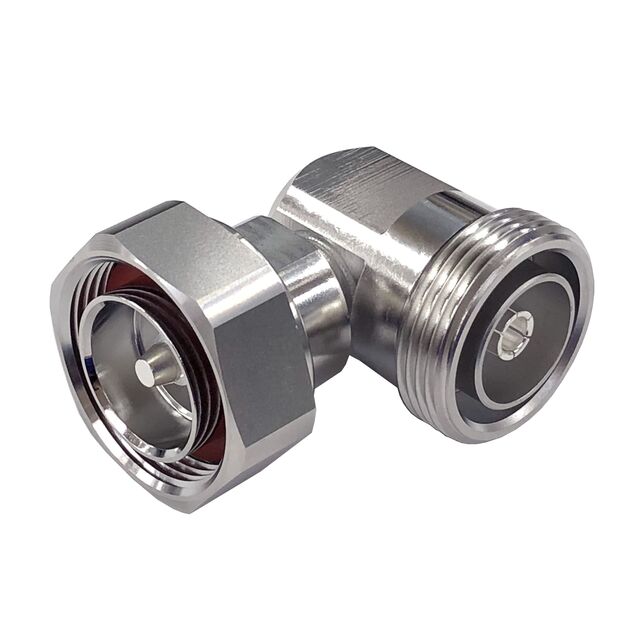

7/16-LA-PJ
Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 7/16-LA-PJ |
|---|---|
| Adapter Series | 7/16 to 7/16 |
| Adapter Type | Plug to Jack |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 16 Jack, Female Socket, 7 |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | 7/16 Plug |
| Fastening Type | Threaded |
| Frequency - Max | 3 GHz |
| Impedance | 50 Ohm |
| Ingress Protection | Waterproof |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Style | Right Angle |
