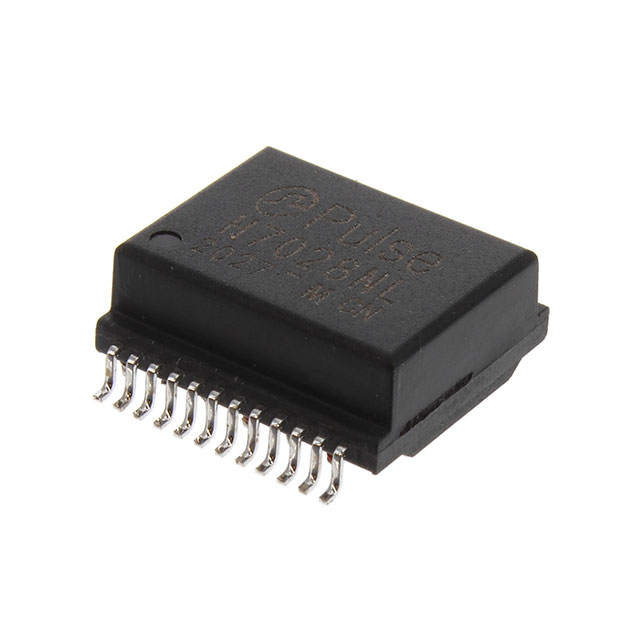

H7028NL
ActivePulse Electronics
10GBASE-T DISCRETE 4CH BCM PHY
H7028NL
ActivePulse Electronics
10GBASE-T DISCRETE 4CH BCM PHY
Description
General part information
H7028NL
120µH LAN 10G Base-T Pulse Transformer 1:1
Technical Specifications
Parameters and characteristics for this part
| Specification | H7028NL |
|---|---|
| Height - Seated (Max) | 0.25 in |
| Inductance | 120 µH |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.537 in |
| Size / Dimension Width | 0.48 in |
| Transformer Type | LAN 10G Base-T |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
