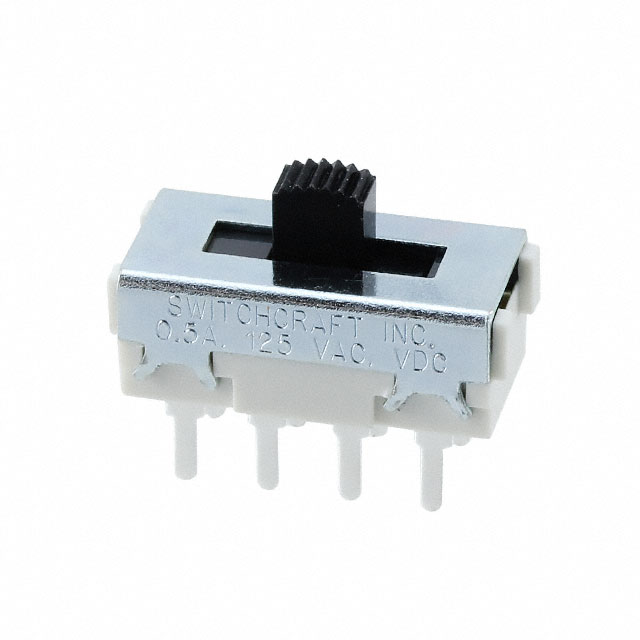

C56313L2X

Active

Switchcraft Inc.

SWITCH SLIDE ON ON ON DP3T TOP SLIDE 0.5A 125VAC 125VDC PC PINS THRU-HOLE

Search across all available documentation for this part.

Active

Switchcraft Inc.

SWITCH SLIDE ON ON ON DP3T TOP SLIDE 0.5A 125VAC 125VDC PC PINS THRU-HOLE

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE ON ON ON DP3T TOP SLIDE 0.5A 125VAC 125VDC PC PINS THRU-HOLE

Part	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Contact Finish	Contact Material	Actuator Length [x]	Termination Style	Voltage Rating - AC	Circuit	Actuator Material	Mounting Type	Switch Function	Contact Timing	Switch Travel	Current Rating (Amps)
Switchcraft Inc. C56313L2X	Standard	-20 C	70 °C	125 VDC	Silver	Copper Alloy	4.75 mm	PC Pin	125 V	DP3T	Thermoplastic	Through Hole	On-On-On	Non-Shorting	3.81 mm	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.92
Digikey	Bulk	1	$ 16.56

General part information

Slide Switch DP3T Through Hole
