042028070
ActiveRose Enclosures
BOX ALUM GRAY 11.02"L X 7.87"W
042028070
ActiveRose Enclosures
BOX ALUM GRAY 11.02"L X 7.87"W
Description
General part information
042028070

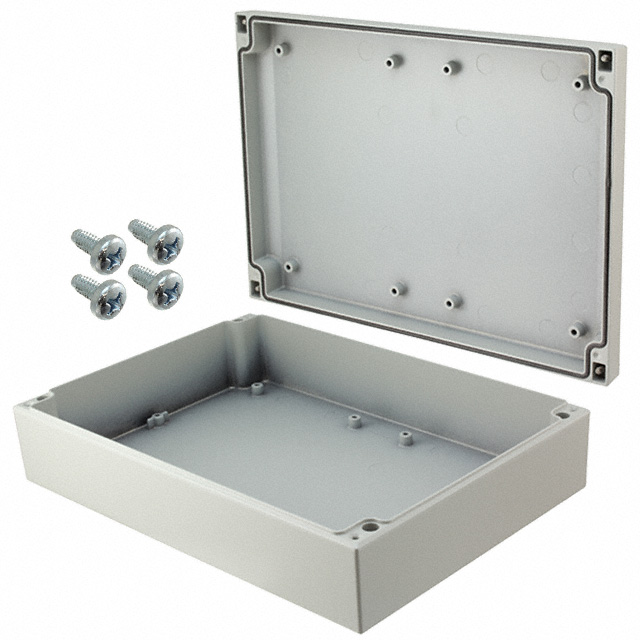

Box Metal, Aluminum Gray Cover Included 11.024" L x 7.874" W (280.00mm x 200.00mm) X 2.854" (72.50mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 042028070 |
|---|---|
| Area (L x W) | 86.8 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight, PCB Supports |
| Height | 2.854 in |
| Material | Metal, Aluminum |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 11.024 in |
| Size / Dimension Width | 7.874 in |
| Thickness | 0.157 in |
| Weight | 3.3 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
