LCCA30408-FT6
ActivePasternack
SMA M TO N MRA USING LC141TB, 6
LCCA30408-FT6
ActivePasternack
SMA M TO N MRA USING LC141TB, 6
Description
General part information
LCCA30408-FT6

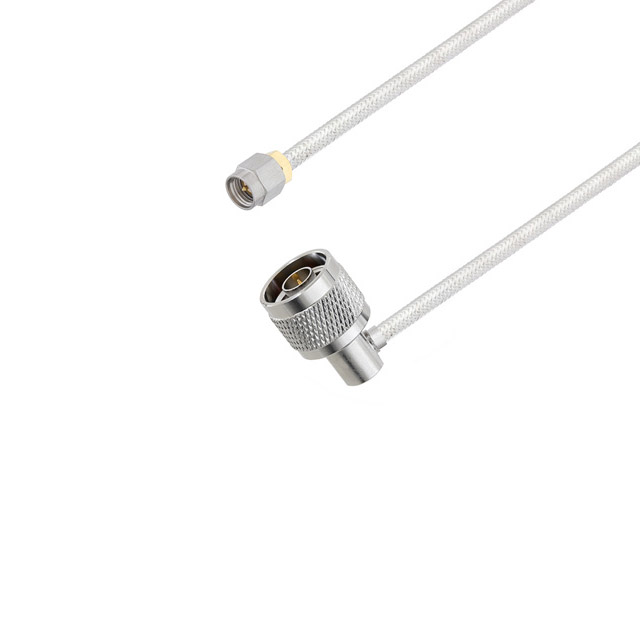

Cable Assembly Coaxial SMA to N-Type LC141TB 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30408-FT6 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC141TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 10 GHz |
| Length | 72 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
