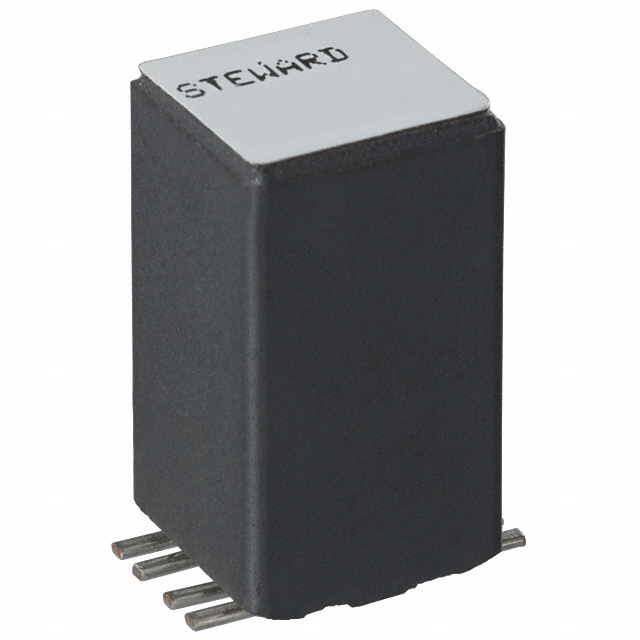

CM3032V301R-00
ObsoleteLaird Technologies EMI
CMC 8A 4LN 300 OHM SMD
CM3032V301R-00
ObsoleteLaird Technologies EMI
CMC 8A 4LN 300 OHM SMD
Description
General part information
CM3032V301R-00
4 Line Common Mode Choke Surface Mount 300 Ohms @ 100 MHz 8A DCR 10mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM3032V301R-00 |
|---|---|
| Current Rating (Max) | 8 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Filter Type | Signal Line, Power |
| Height (Max) | 0.58 in |
| Impedance | 300 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 8 Flat Lead, Vertical |
| Package Leads | 8 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.3 in |
| Size / Dimension Width | 0.32 in |
