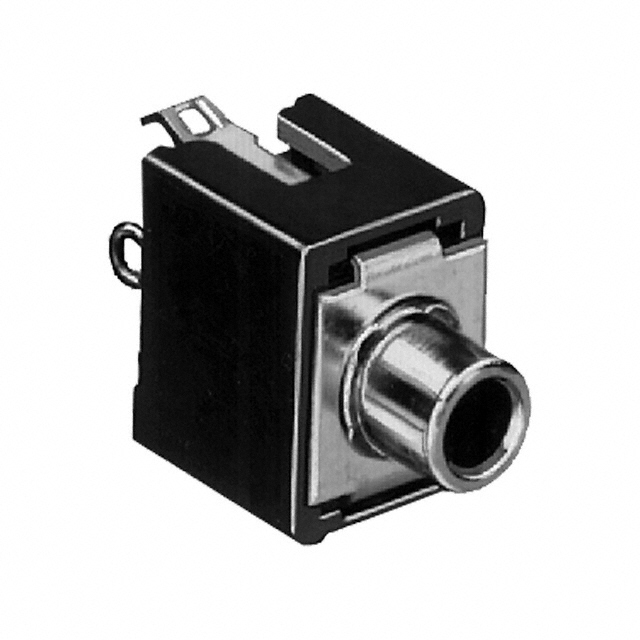

PC142A
ObsoleteSWITCHCRAFT/CONXALL
CONN JACK MONO 3.55MM PCB
PC142A
ObsoleteSWITCHCRAFT/CONXALL
CONN JACK MONO 3.55MM PCB
Description
General part information
PC142A
3.55mm (0.14", Tini Plug) Phone Jack Mono Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | PC142A |
|---|---|
| Actual Diameter | 0.145 in |
| Body Color | Black, Silver |
| Body Material | Copper Alloy |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Tin |
| Current Rating | 0.25 A |
| Gender | Female |
| Housing Material | Plastic |
| Includes | Washer, Connector, Nut |
| Includes Total Count | 3 pcs |
| Industry Recognized Mating Diameter | 3.55 mm |
| Industry Recognized Mating Diameter (Connector) | Tini Plug |
| Internal Switch(s) | Single Switch |
| Mounting Type | Through Hole |
| Number of Conductors | 2 |
| Number of Contacts | 3 |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 48 VDC |
