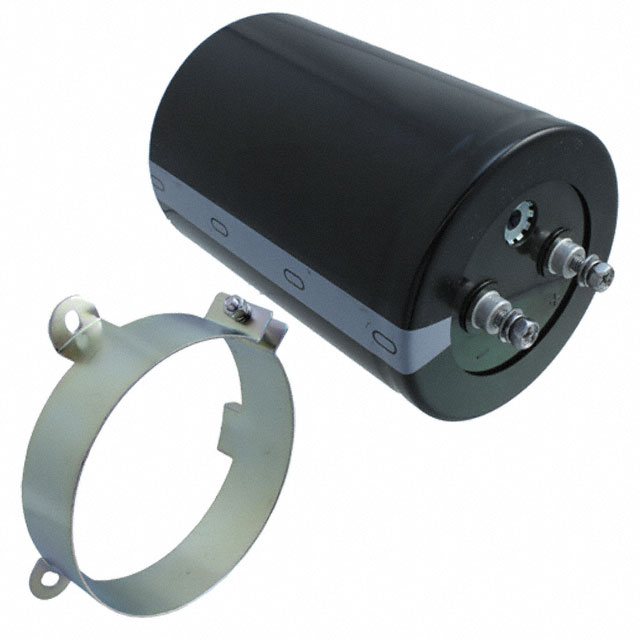

LNU2G822MSEJ
8200 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNU2G822MSEJ |
|---|---|
| Applications | General Purpose |
| Capacitance | 8200 µF |
| Height - Seated (Max) | 5.039 in |
| Lead Spacing | 1.252 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 32.34 A, 23.1 A |
| Size / Dimension Diameter | 3.543 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
