SP-3540B

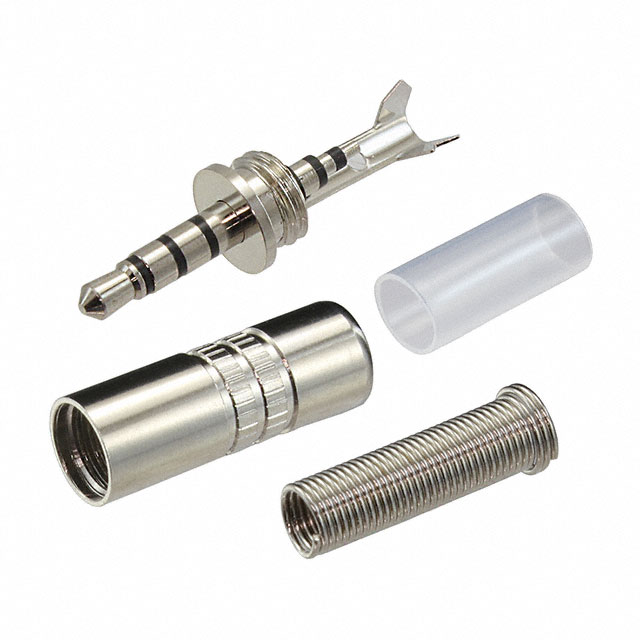

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (4 Conductor, TRRS) Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-3540B |
|---|---|
| Actual Diameter | 0.126 in |
| Body Color | Silver |
| Body Material | Brass |
| Cable Opening | 0.157 in |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Current Rating | 1 A |
| Features | Strain Relief, Cover |
| Gender | Male |
| Housing Material | Brass |
| Includes | Cover, Connector |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (Headphone - Mini Plug) | 3.5 mm |
| Industry Recognized Mating Diameter (Headphone Options) | Mini Plug |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.551 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 4 Conductors |
| Number of Contacts | 4 Contacts |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Signal Lines | 4 Conductor, TRRS, Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VAC |
