A1TAAT0-H005PN-0000

Active

ODU

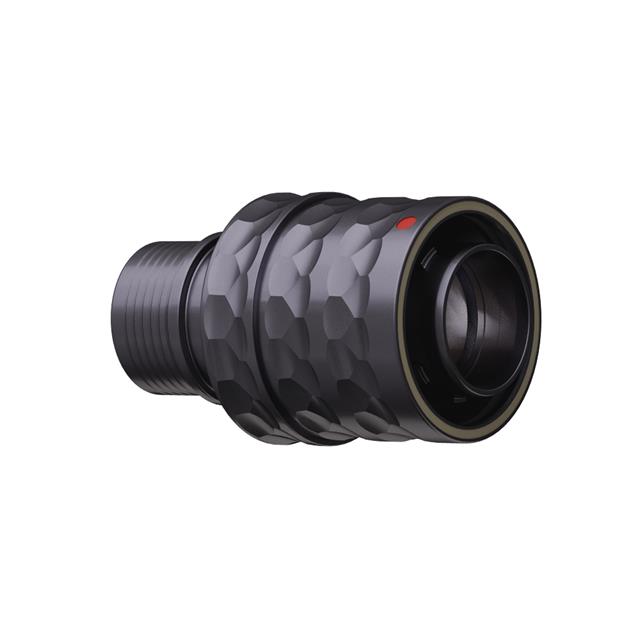

ODU AMC SERIES T BREAK-AWAY PLUG

Search across all available documentation for this part.

Active

ODU

ODU AMC SERIES T BREAK-AWAY PLUG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A1TAAT0-H005PN-0000	A1TAAT0-H Series

Cable Opening [custom]	14.6 mm	14.6 mm
Cable Opening [custom]	0.575 in	0.575 in
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	5 - 13 A
Fastening Type	Push-Pull	Push-Pull
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68, IP69K	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	18
Operating Temperature [Max]	347 °F	347 °F
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Tin Nickel	Tin Nickel
Shell Material	Aluminum	Aluminum
Shell Size - Insert	12	12
Shielding	Shielded	Shielded
Termination	Crimp	Crimp
Voltage Rating	50 V	50 V

ODU AMC SERIES T BREAK-AWAY PLUG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Primary Material	Orientation	Ingress Protection	Features	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Color	Number of Positions	Insert Material	Current Rating (Amps)	Shell Finish	Voltage Rating	Shielding	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Fastening Type	Contact Material	Termination	Shell Size - Insert	Contact Finish - Mating
ODU A1TAAT0-HM18PN-0000	-65 ░C	347 °F	Aluminum	Metal	A	IP68, IP69K	Coupling Nut	UL94 V-0	1.27 µm	50 µin	Free Hanging (In-Line)	Silver	18	Polyetheretherketone (PEEK)	5 A, 7.5 A	Tin Nickel	50 V	Shielded	14.6 mm	0.575 in	Male Pins, Plug	Push-Pull	Copper Alloy	Crimp	12	Gold
ODU A1TAAT0-H005PN-0000	-65 ░C	347 °F	Aluminum	Metal	A	IP68, IP69K	Coupling Nut	UL94 V-0	1.27 µm	50 µin	Free Hanging (In-Line)	Silver		Polyetheretherketone (PEEK)	13 A	Tin Nickel	50 V	Shielded	14.6 mm	0.575 in	Male Pins, Plug	Push-Pull	Copper Alloy	Crimp	12	Gold
