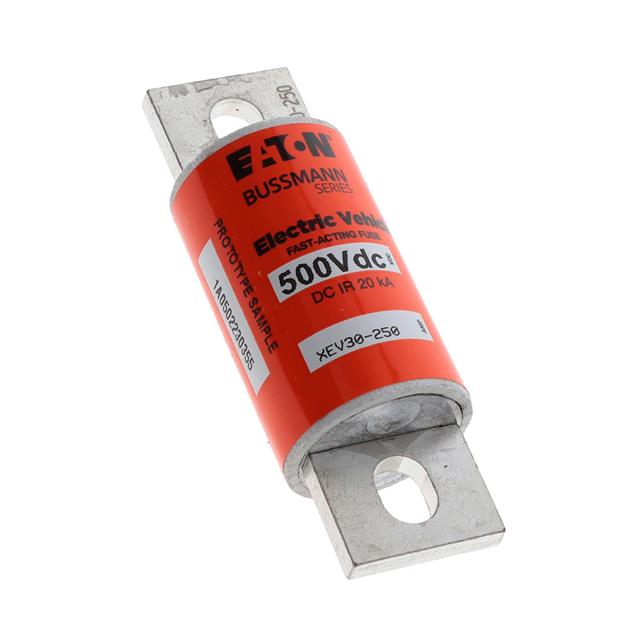

XEV30-250-SP
ActiveEaton - Electronics Division
30MM EV FUSE SAMPLE
XEV30-250-SP
ActiveEaton - Electronics Division
30MM EV FUSE SAMPLE
Description
General part information
XEV30-250-SP
250A 500 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XEV30-250-SP |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 20 kA |
| Current Rating | 250 A |
| Fuse Type | Cartridge |
| Melting I²t | 5017 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 1.181 in |
| Size / Dimension Length | 2.087 in |
| Voltage Rating - DC | 500 V |
