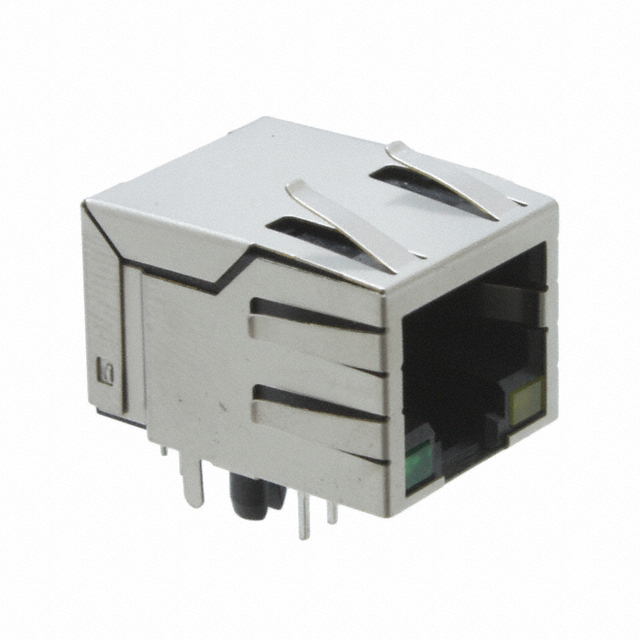

A63-114-331P4D2

Obsolete

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Obsolete

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A63-114-331P4D2	A63-114 Series

Applications	10/100 Base-T, AutoMDIX	10/100 Base-T, AutoMDIX
Connector Type	RJ45	RJ45
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Material	-	Copper Alloy
Height Above Board	0.531 in	0.531 - 0.664 in
Height Above Board	13.49 mm	13.49 - 16.87 mm
Housing Material	Polyester, Polybutylene Terephthalate (PBT)	Polyester, Polybutylene Terephthalate (PBT), Thermoplastic
LED Color	Yellow, Green	Yellow, Green
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Rows	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Orientation	90 °	90 °
Orientation	-	Vertical
Shield Material	-	Copper Alloy
Shielding	Shielded, EMI Finger	Shielded, Shielded, EMI Finger
Tab Direction	Down	User Selectable, Down
Termination	Solder	Solder

CONN JACK 1PORT PCB

Part	Orientation	Number of Rows	Housing Material	Tab Direction	Height Above Board	Height Above Board	Applications	Termination	Mounting Type	LED Color	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Ports	Shielding	Contact Finish	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shield Material
EDAC Inc. A63-114-431P112	Vertical	1	Polybutylene Terephthalate (PBT), Polyester	User Selectable	16.87 mm	0.664 in	10/100 Base-T, AutoMDIX	Solder	Through Hole	Green, Yellow	0.76 Ám	30 Áin	RJ45	1	Shielded	Gold
EDAC Inc. A63-114-331P4D2		1	Polybutylene Terephthalate (PBT), Polyester	Down	13.49 mm	0.531 in	10/100 Base-T, AutoMDIX	Solder	Through Hole	Green, Yellow	0.76 Ám	30 Áin	RJ45	1	Shielded, EMI Finger	Gold	90 °	70 °C	0 °C
EDAC Inc. A63-114-331P422		1	Thermoplastic	Down	13.49 mm	0.531 in	10/100 Base-T, AutoMDIX	Solder	Through Hole	Green, Yellow	0.76 Ám	30 Áin	RJ45	1	Shielded, EMI Finger	Gold	90 °	70 °C	0 °C	Copper Alloy	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
