MCZ-1000-1-CA006

Active

Cicoil

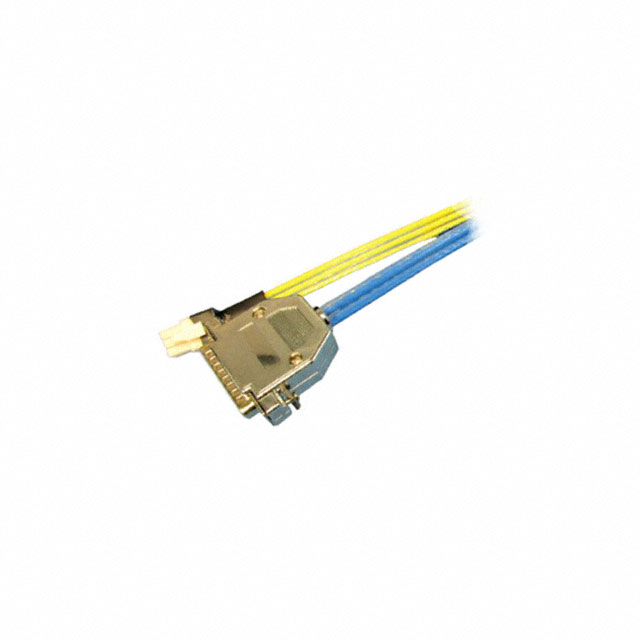

CBL ASSY D-SUB 25P M TO MALE 6'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MCZ-1000-1-CA006

Active

Cicoil

CBL ASSY D-SUB 25P M TO MALE 6'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MCZ-1000-1-CA006	MCZ-1000 Series

Cable Type	Flat	Flat Cable, Flat
Color	Blue, Yellow	Blue, Yellow
Conductor Material	-	Copper, Tinned
Conductor Strand	-	Solid
Connector Type	Rectangular 09 pos Male to Male, D-Sub 25 pos Male to Male	Rectangular 09 pos Male to Male, D-Sub 25 pos Male to Male
Current Rating (Amps)	-	8 A
Jacket (Insulation) Material	-	Flexx-Sil™
Jacket Color	-	Yellow, Blue
Length	6 ft	6 - 25 ft
Length	1.83 m	1.83 - 91.44 m
Length	-	3 ft
Number of Conductors	-	39 Pairs
Number of Conductors	-	26 - 78 Conductors
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Ribbon Thickness	-	4.83 - 13.97 mm
Ribbon Thickness	-	0.19 - 0.55 in
Ribbon Width	-	42.67 - 64.01 mm
Ribbon Width	-	1.68 - 2.52 in
Ribbon Width	-	21.34 mm
Ribbon Width	-	0.84 in
Shielding	Shielded	Shielded
Voltage	-	450 V
Wire Gauge	-	22 - 28 AWG

MCZ-1000 Series

CABLE RIBBON 78 COND TWIST-PAIR

Part	Jacket (Insulation) Material	Jacket Color	Ribbon Thickness	Ribbon Thickness	Number of Conductors [custom]	Number of Conductors	Current Rating (Amps)	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Voltage	Conductor Material	Length	Length	Ribbon Width [y]	Ribbon Width [y]	Shielding	Wire Gauge	Color	Length [x]	Connector Type	Ribbon Width [x]	Ribbon Width [x]
Cicoil MCZ-1000-3-025	Flexx-Sil™	Blue, Yellow	13.97 mm	0.55 in	39 Pairs	78 Conductors	8 A	Flat Cable	-65 ░C	165 °C	Solid	450 V	Copper, Tinned	25 ft	7.62 m	64.01 mm	2.52 in	Shielded	22 AWG, 28 AWG
Cicoil MCZ-1000-2-CA003								Flat							91.44 cm			Shielded		Blue, Yellow	3 ft	D-Sub 25 pos Male to Male, Rectangular 09 pos Male to Male
Cicoil MCZ-1000-3-CA003								Flat							91.44 cm			Shielded		Blue, Yellow	3 ft	D-Sub 25 pos Male to Male, Rectangular 09 pos Male to Male
Cicoil MCZ-1000-1-CA012								Flat						12 ft	3.66 m			Shielded		Blue, Yellow		D-Sub 25 pos Male to Male, Rectangular 09 pos Male to Male
Cicoil MCZ-1000-1-CA006								Flat						6 ft	1.83 m			Shielded		Blue, Yellow		D-Sub 25 pos Male to Male, Rectangular 09 pos Male to Male
Cicoil MCZ-1000-2-CA006								Flat						6 ft	1.83 m			Shielded		Blue, Yellow		D-Sub 25 pos Male to Male, Rectangular 09 pos Male to Male
Cicoil MCZ-1000-3-CA006								Flat						6 ft	1.83 m			Shielded		Blue, Yellow		D-Sub 25 pos Male to Male, Rectangular 09 pos Male to Male
Cicoil MCZ-1000-3-CA012								Flat						12 ft	3.66 m			Shielded		Blue, Yellow		D-Sub 25 pos Male to Male, Rectangular 09 pos Male to Male
Cicoil MCZ-1000-2-025	Flexx-Sil™	Blue, Yellow	9.14 mm	0.36 in		52	8 A	Flat Cable	-65 ░C	165 °C	Solid	450 V	Copper, Tinned	25 ft	7.62 m	42.67 mm	1.68 in	Shielded	22 AWG, 28 AWG
Cicoil MCZ-1000-1-025	Flexx-Sil™	Blue, Yellow	4.83 mm	0.19 in		26	8 A	Flat Cable	-65 ░C	165 °C	Solid	450 V	Copper, Tinned	25 ft	7.62 m			Shielded	22 AWG, 28 AWG				21.34 mm	0.84 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 293.91

Description

General part information

MCZ-1000 Series

Cable Assembly D-Sub 25 pos Male to Male; Rectangular 09 pos Male to Male 6.00' (1.83m)

Documents

Technical documentation and resources
