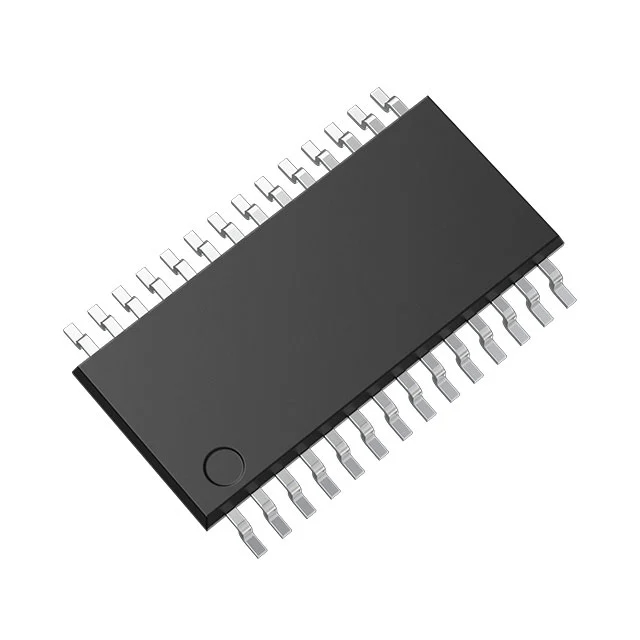

TB67H481FNG,EL
ActiveToshiba Semiconductor and Storage
BRUSHED MOTOR CONTROL DRIVER IC,
TB67H481FNG,EL
ActiveToshiba Semiconductor and Storage
BRUSHED MOTOR CONTROL DRIVER IC,
Description
General part information
TB67H481FNG,EL
BRUSHED MOTOR CONTROL DRIVER IC,
Technical Specifications
Parameters and characteristics for this part
| Specification | TB67H481FNG,EL |
|---|---|
| Applications | General Purpose |
| Current - Output | 2.5 A |
| Function | Control and Power Stage, Driver - Fully Integrated |
| Half-Bridge Count | 4 |
| Interface | On/Off |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Half Bridge |
| Package Features | Exposed Pad |
| Package Length | 0.173 in |
| Package Name | 28-TSSOP, 28-HTSSOP |
| Package Width | 4.4 mm |
| Step Resolution | 1 |
| Step Resolution | 1 |
| Technology | DMOS |
| Voltage - Load (Max) | 44 V |
| Voltage - Load (Min) | 8.2 V |
| Voltage - Supply (Maximum) | 44 V |
| Voltage - Supply (Minimum) | 8.2 V |
