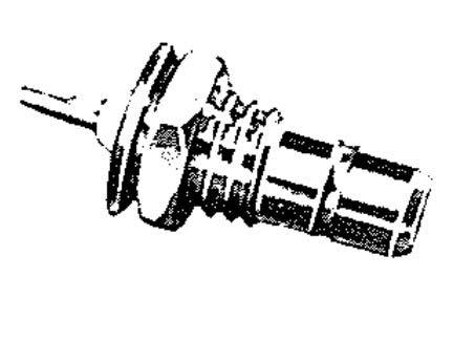

UM-QR-1(41)
ObsoleteHirose Electric Co Ltd
RF CONNECTORS / COAXIAL CONNECTORS CONNECTORS
UM-QR-1(41)
ObsoleteHirose Electric Co Ltd
RF CONNECTORS / COAXIAL CONNECTORS CONNECTORS
Description
General part information
UM-QR-1(41)
RF CONNECTORS / COAXIAL CONNECTORS CONNECTORS
Technical Specifications
Parameters and characteristics for this part
| Specification | UM-QR-1(41) |
|---|---|
| Center Contact Material | Brass |
| Connector Style | U.FL (UMCC) |
| Connector Type | Receptacle, Male Pin |
| Contact Termination | Solder Cup |
| Fastening Type | Snap-On |
| Frequency - Max | 1 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder Tag |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
