Description
General part information

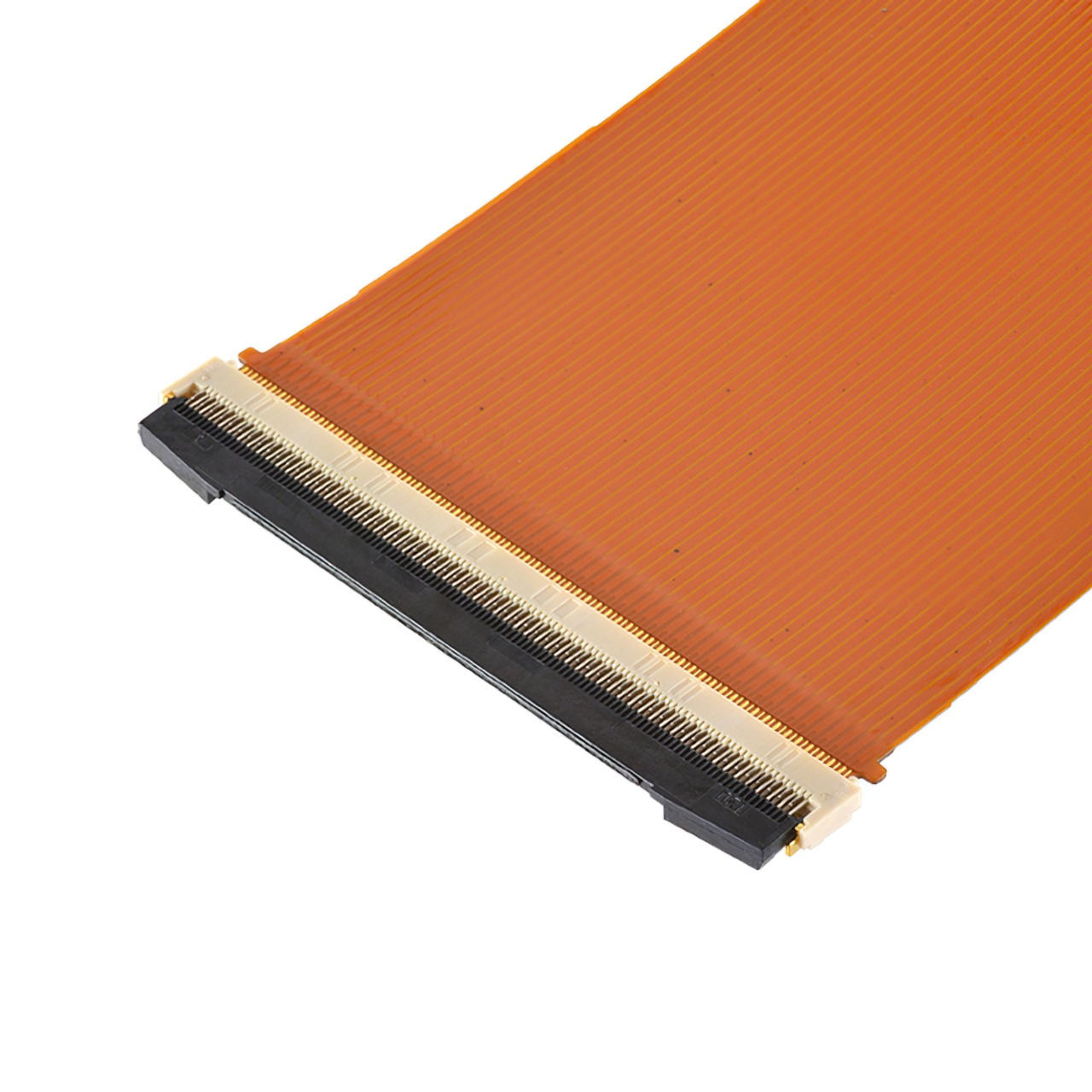

20617-100E-01
CONN FFC 100POS 0.4MM SMD R/A
Technical Specifications
Parameters and characteristics for this part
| Specification | 20617-100E-01 |
|---|---|
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tabbed, Tapered, Notched |
| Connector/Contact Type | Top, Contacts, Bottom |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.2 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.035 in |
| Housing Material | Liquid Crystal Polymer, LCP |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 100 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.016 in |
| Termination | Solder |
| Voltage Rating | 50 V |
