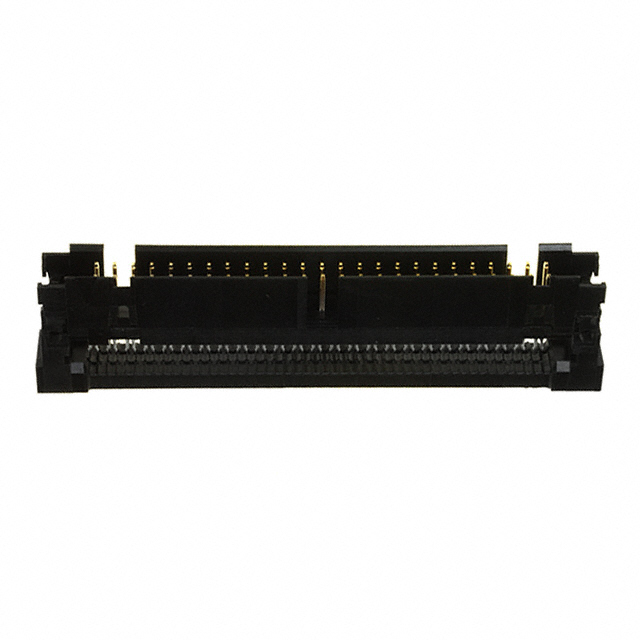

1-111446-1
ActiveTE Connectivity AMP Connectors
CONN PLUG 50P IDC 26-28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-111446-1
ActiveTE Connectivity AMP Connectors
CONN PLUG 50P IDC 26-28AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-111446-1 | 111446 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Male Pin | Male Pin |
| Features | Feed Through | Feed Through |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 50 | 14 - 50 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
111446 Series
CONN PLUG 16P IDC 26-28AWG GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Type | Pitch [x] | Pitch [x] | Row Spacing [x] | Row Spacing | Features | Wire Type | Number of Rows | Number of Positions | Connector Type | Contact Finish | Cable Termination | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 111446-3 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | 16 | Plug | Gold | IDC | Black | |
TE Connectivity AMP Connectors 1-111446-5 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | Plug | Gold | IDC | Black | 14 | |
TE Connectivity AMP Connectors 1-111446-8 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | Plug | Gold | IDC | Black | 20 | |
TE Connectivity AMP Connectors 1-111446-1 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | Plug | Gold | IDC | Black | 50 | |
TE Connectivity AMP Connectors 1-111446-6 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | 16 | Plug | Gold | IDC | Black | |
TE Connectivity AMP Connectors 111446-2 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | Plug | Gold | IDC | Black | 14 | |
TE Connectivity AMP Connectors 111446-8 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | Plug | Gold | IDC | Black | 34 | |
TE Connectivity AMP Connectors 111446-6 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | Plug | Gold | IDC | Black | 26 | |
TE Connectivity AMP Connectors 111446-9 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | Plug | Gold | IDC | Black | 40 | |
TE Connectivity AMP Connectors 2-111446-1 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Male Pin | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Feed Through | Ribbon Cable | 2 | Plug | Gold | IDC | Black | 30 |
Description
General part information
111446 Series
50 Position Rectangular Plug Connector IDC Gold 26-28 AWG
