Description
General part information

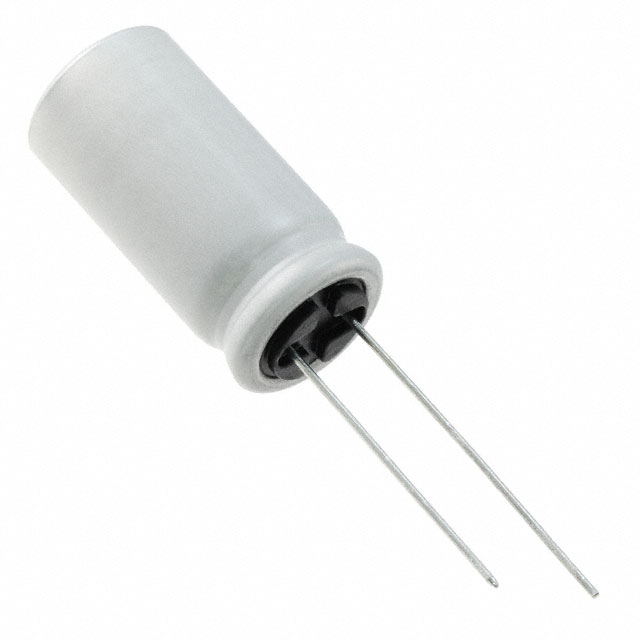

UBY1H821MHL1TO
820 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 44mOhm @ 100kHz 3000 Hrs @ 135°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UBY1H821MHL1TO |
|---|---|
| Applications | Automotive |
| Capacitance | 820 µF |
| ESR (Equivalent Series Resistance) | 44 mOhm |
| Height - Seated (Max) | 1.043 in |
| Lead Spacing | 0.197 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 2.01 A, 3.35 A |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 V |
