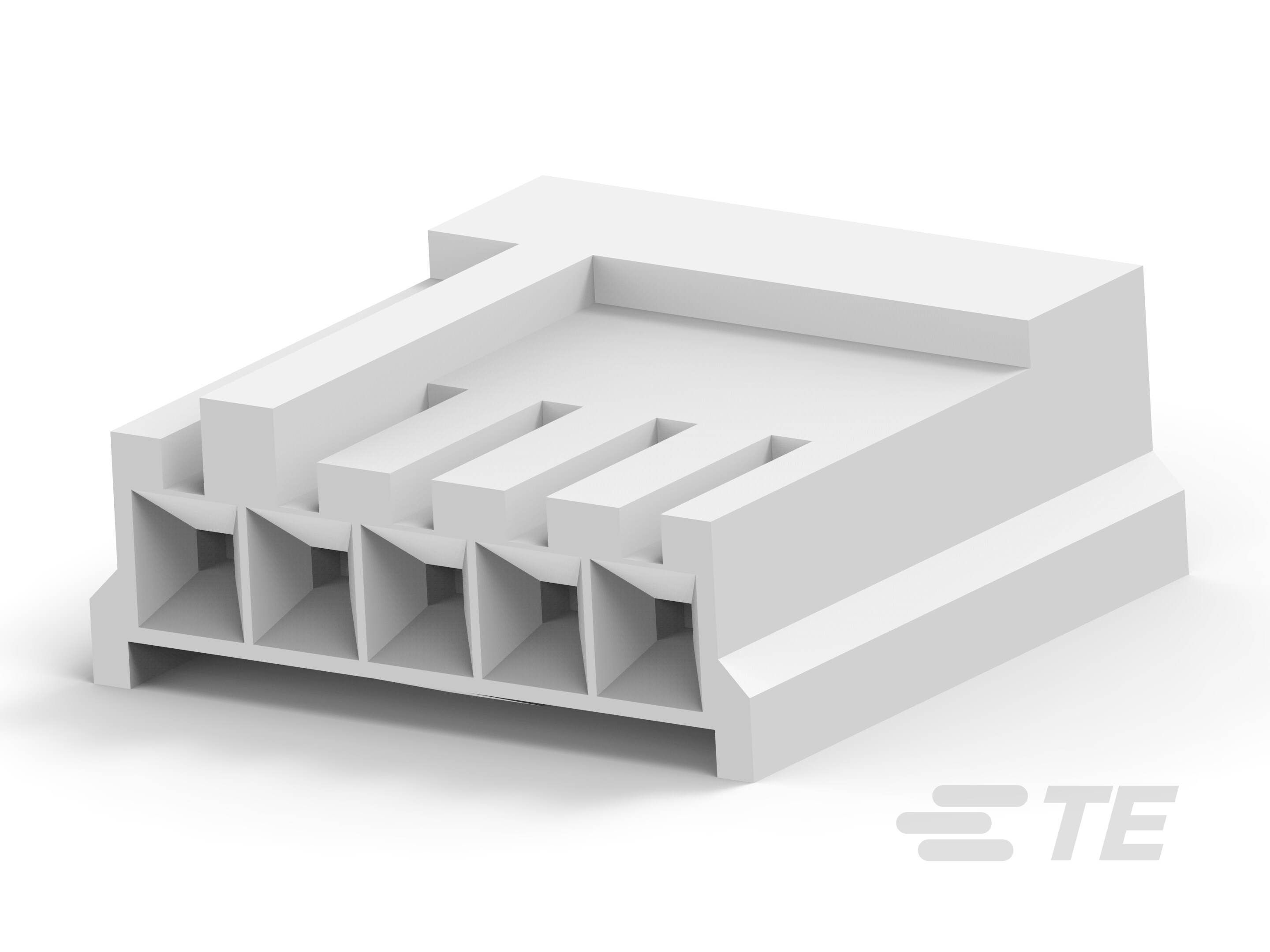

171822-5
ActiveTE Connectivity AMP Connectors
CONN HOUSING RCP 5 POS 2.5MM CRIMP ST CABLE MOUNT NATURAL BAG
171822-5
ActiveTE Connectivity AMP Connectors
CONN HOUSING RCP 5 POS 2.5MM CRIMP ST CABLE MOUNT NATURAL BAG
Description
General part information
171822-5
Housing, Receptacle, Wire-to-Board, 5 Position, 2.5 mm [.098 in] Centerline, Crimp, 1 Row, Natural, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 171822-5 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.098 in |
