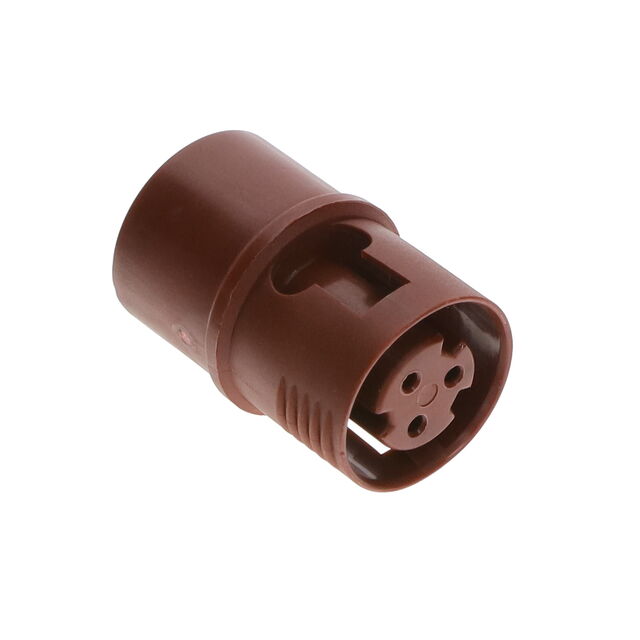

Specification	SJS620100

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Detent Lock
Housing Color	Red
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	95 °C
Operating Temperature (Min)	-55 °C
Orientation	A
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8
Shell Size - Insert	8
Shielding	Unshielded
Type	For Female Sockets

Luminus Series

Part	Number of Positions	Number of Rows	Color	Contact Type	Cable Termination	Features	Connector Type	Wire Type	Fastening Type	Wire Gauge	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Termination	Insulation Material	Material Flammability Rating	Insulation Color	Contact Shape	Shrouding	Number of Positions Loaded	Termination	Insulation Height	Style
McGill Microwave Systems SQR422121	4	1	White	Female Socket	Crimp	IP67	Plug	Discrete	Push-Pull	22 AWG	Free Hanging (In-Line)
McGill Microwave Systems SQR422720	4	1	White	Female Socket		IP67	Receptacle		Push-Pull		Free Hanging (In-Line)	-65 °C	175 °C	Crimp	Polyetherimide (PEI)
McGill Microwave Systems SQR216211	2	1	Green	Female Socket	Crimp	IP67	Receptacle	Discrete	Push-Pull	16 AWG	Free Hanging (In-Line)
McGill Microwave Systems SQR216561	2	1	Green	Female Socket	Crimp	IP67	Receptacle	Discrete	Push-Pull	16 AWG	Free Hanging (In-Line)
McGill Microwave Systems SQR320710	3	1	Green	Female Socket		IP67	Receptacle		Push-Pull		Free Hanging (In-Line)	-65 °C	175 °C	Crimp	Polyetherimide (PEI)
McGill Microwave Systems SQR422111	4	1	Green	Female Socket	Crimp	IP67	Plug	Discrete	Push-Pull	22 AWG	Free Hanging (In-Line)
McGill Microwave Systems SQR216210	2	1	Green	Female Socket		IP67	Receptacle		Push-Pull		Free Hanging (In-Line)	-65 °C	175 °C	Crimp	Polyetherimide (PEI)
McGill Microwave Systems SQR320713	3	1		Male Pin		Mounting Flange	Receptacle		Push-Pull		Right Angle Through Hole	-65 °C	175 °C		Polyetherimide (PEI)	UL94 V-0	Green	Circular	Shrouded - 4 Wall	All	Solder	0.6 in	Board Cable/Wire
McGill Microwave Systems SQRC22210	12	3	Green	Female Socket		IP67	Receptacle		Push-Pull		Free Hanging (In-Line)	-65 °C	175 °C	Crimp	Polyetherimide (PEI)
McGill Microwave Systems SQR920171	9	3	White	Female Socket	Crimp	IP67	Plug	Discrete	Push-Pull	20 AWG	Free Hanging (In-Line)
