192103Z2
ActiveCML Innovative Technologies LTD

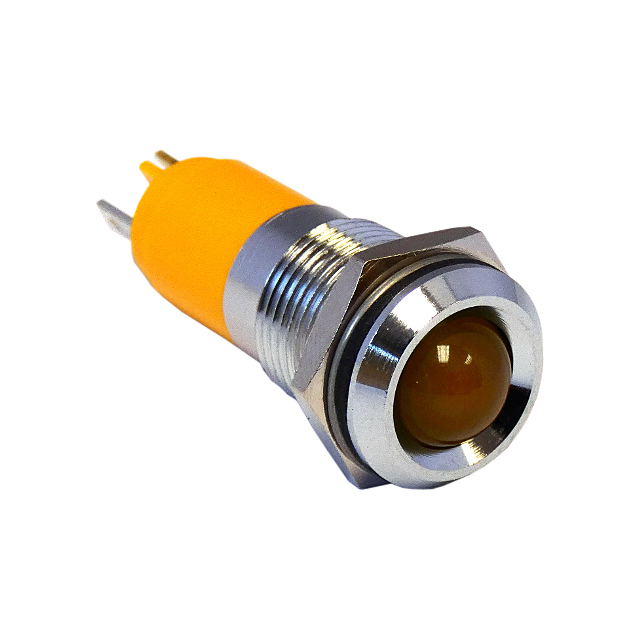

INDICATOR PNL MNT 14MM 24V AC/DC
192103Z2
ActiveCML Innovative Technologies LTD
INDICATOR PNL MNT 14MM 24V AC/DC
Description
General part information
192103Z2
LED Panel Indicator 24V 20mA Quick Connect - 0.354" (9.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 192103Z2 |
|---|---|
| Current | 20 mA |
| Ingress Protection | IP67 |
| Lens Color | Yellow |
| Lens Style | Round, Domed Top |
| Millicandela Rating | 50 mcd |
| Panel Cutout Dimension | 0.551 " |
| Panel Cutout Shape | Round |
| Ratings | AC, DC |
| Termination Length | 0.354 in |
| Termination Style | Quick Connect |
| Type | LED |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
