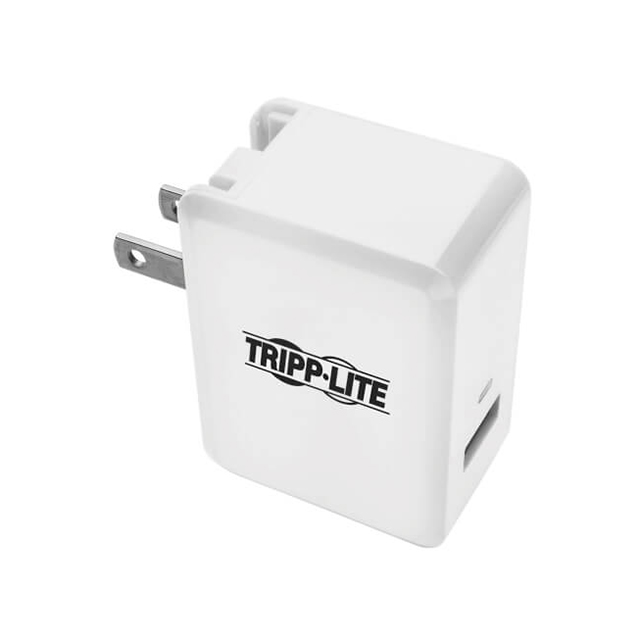

U280-W01-QC3-1
ActiveEaton Tripp Lite
USB WALL/TRVL CHRGR W QCK CHRG
U280-W01-QC3-1
ActiveEaton Tripp Lite
USB WALL/TRVL CHRGR W QCK CHRG
Description
General part information
U280-W01-QC3-1
USB Wall Mount Battery Charger 3.6 ~ 6.5V/6.5 ~ 9V/9 ~ 12V 3A/2A/1.5A
Technical Specifications
Parameters and characteristics for this part
| Specification | U280-W01-QC3-1 |
|---|---|
| Battery Chemistry | Mobile Devices |
| Charge Current - Max (Maximum) | 3 A |
| Charge Current - Max (Minimum) | 1.5 A |
| Charge Current - Max (Typical) | 2 A |
| Mounting Type | Wall Mount |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Height | 2.2 in |
| Size / Dimension Length | 1.7 in |
| Size / Dimension Width | 1.1 in |
| Termination Style | USB A Receptacle |
| Type | USB Wall Mount |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Nominal Maximum (Range 1) | 6.5 V |
| Voltage - Nominal Maximum (Range 2) | 9 V |
| Voltage - Nominal Maximum (Range 3) | 12 V |
| Voltage - Nominal Minimum (Range 1) | 3.6 V |
| Voltage - Nominal Minimum (Range 2) | 6.5 V |
| Voltage - Nominal Minimum (Range 3) | 9 V |
