2443734-2
ActiveTE Connectivity AMP Connectors

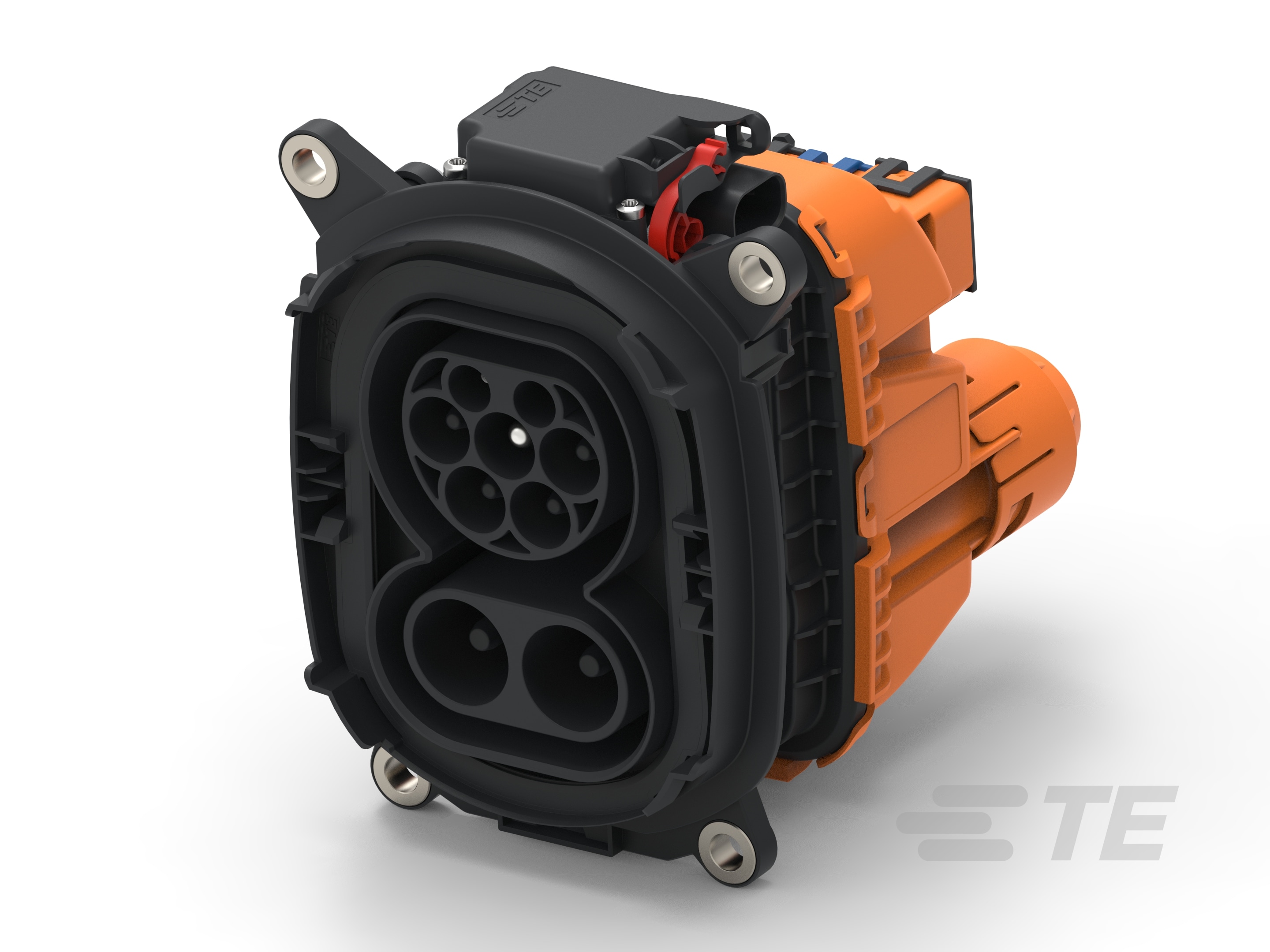

COMBO 2,CHARGE INLET KIT 120 SQMM, 32A
2443734-2
ActiveTE Connectivity AMP Connectors
COMBO 2,CHARGE INLET KIT 120 SQMM, 32A
Description
General part information
Charging Inlets Series
9 Position, Black - Orange, Sealing Cover, PA GF, 180° Cable Exit, -40 – 85 °C [-40 – 185 °F], Charging Inlets
Technical Specifications
Parameters and characteristics for this part
| Specification | 2443734-2 |
|---|---|
| Accomodates a Fuse | No |
| Connector Style | IEC 62196 |
| Connector Type | Receptacle, Male Pins |
| Filter Type | Unfiltered, Commercial |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 9 |
| Switch Features | Switch, No Breaker |
| Termination | Crimm, Solder Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
